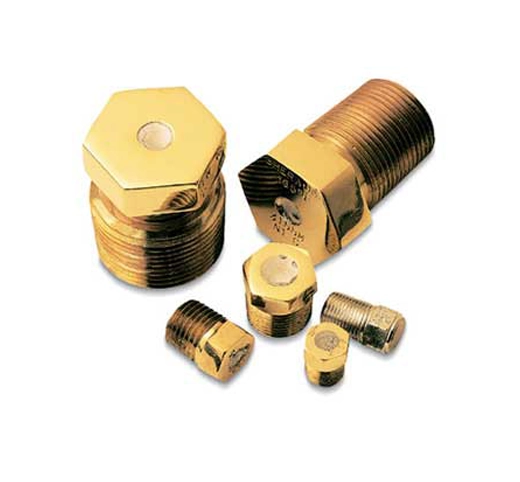

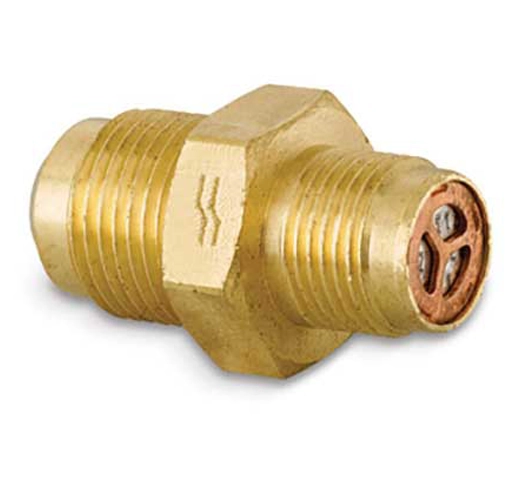

Pressure Relief Devices and Fuse Plugs
Pressure Relief Devices and Fuse Plugs
Sherwood provides a wide array of pressure relief devices and fuse plugs for various gas system applications including industrial, aerospace, HVAC, and fueling systems. Designs can be custom made to your engineering specifications.
Key Features & Benefits
- Manufactured in brass and stainless steel body materials
- Standard burst pressure range up to 10,000 PSI
- Standard Fuse plug temperatures up to 212 F
- Custom interface, pressures and temperatures available based on your engineering specifications
- Replacement pressure relief devices only available for our Sherwood manufactured valves
| Design Specifications | |
|---|---|
| Working pressure | Up to 10,000 PSI activation (690 bar) |
| Helium Leak Rate | Down to 10-7 atm cc/sec |
| Operating Temp Range | -65° F (-54°C) up to 155° F (68°C) |
| Materials | Stainless Steel, CDA 360 Brass, Nickel, Copper |
| Standard Accreditation | CGA S1.1 – 2022 |
