Ultra-Containment Berm® – Modular Model (Gorilla Berm)
Ultra-Containment Berm®
Modular Model (Gorilla Berm)
Versatile spill containment that can be reused and easily modified

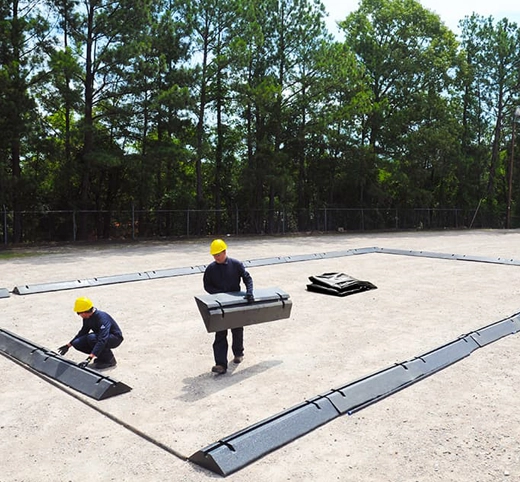

The Ultra-Containment Berm, Modular Model, also known, affectionately, as the Gorilla Berm has the ability to do something that none of our other berms can… change its dimensions. By using 6-foot long coated, foam blocks for its wall structure, the Gorilla Berm can very quickly and easily be resized to other shapes and sizes to meet other requirements.

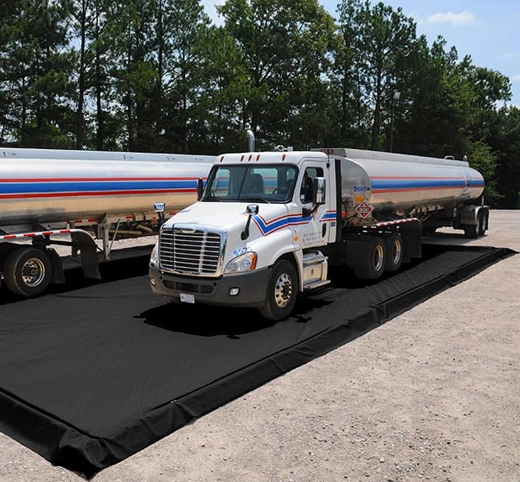

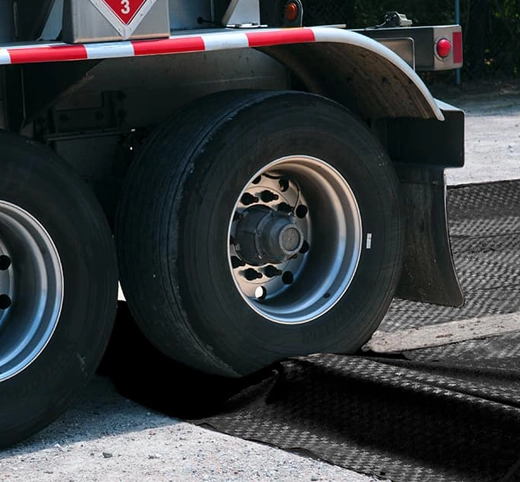

The foam blocks also allow the modular model containment berm to be driven in and out of without any manual operation of the walls. The heavy-duty foam compresses to allow trucks and other vehicles to drive into the unit and quickly returns to its normal state when the weight is removed.
Product Highlights
- Modular construction allows containment areas of any size to be configured.
- Polymer-coated foam support blocks (6’ lengths) provide structure to sidewalls - can be driven over repeatedly without damage.
- Standard material is a 22oz., anti-skid, coated vinyl fabric.

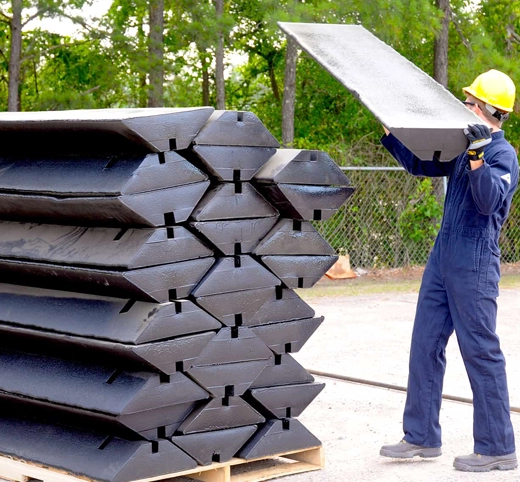

- Triangular-shaped, polymer-coated foam support blocks (72”L x 16”W x 6”H) are used with rebar (not included) to provide sidewall structure.

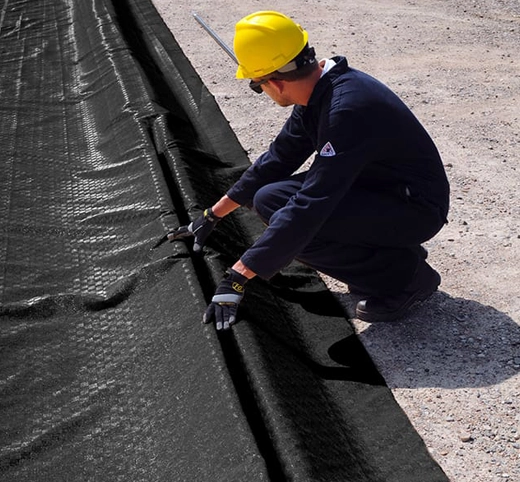

- Molded-in slots in the top of foam blocks hold rebar - secures material in place.
- True drive-in/drive-out capability. No manual set-up or take down of sidewalls required.
Ultra-Containment Berms - Modular Models (Gorilla Berms)
| Part # | Dimensions in. (mm) | Quantity | Containment Capacity gal. (L) | Weight lbs. (kg) | Color |
|---|---|---|---|---|---|
| 8740 | 13 x 7 x .5 (4 x 2.1 x .2) | 6 Walls, 4 Corners | 366 (1,385) | 190 (86.2) | Black |
| 8741 | 13 x 13 x .5 (4 x 4 x .2) | 8 Walls, 4 Corners | 665 (2,517) | 246 (111.6) | Black |
| 8742 | 25 x 13 x .5 (7.6 x 4 x .2) | 12 Walls, 4 Corners | 1,263 (4,781) | 359 (162.8) | Black |
| 8743 | 31 x 13 x .5 (9.4 x 4 x .2) | 14 Walls, 4 Corners | 1,563 (5,917) | 415 (188.2) | Black |
| 8744 | 43 x 13 x .5 (13.1 x 4 x .2) | 18 Walls, 4 Corners | 2,161 (8,180) | 523 (237.2) | Black |
| 8745 | 55 x 13 x .5 (16.8 x 4 x .2) | 22 Walls, 4 Corners | 2,759 (10,444) | 640 (290.3) | Black |
| 8746 | 61 x 13 x .5 (18.6 x 4 x .2) | 24 Walls, 4 Corners | 3,059 (11,580) | 695 (315.2) | Black |
| 8747 | 55 x 25 x .5 (16.8 x 7.6 x .2) | 26 Walls, 4 Corners | 5,243 (19,847) | 838 (380.1) | Black |
| 8748 | 55 x 31 x .5 (16.8 x 9.4 x .2) | 28 Walls, 4 Corners | 6,485 (24,548) | 935 (424.1) | Black |
| 8749 | 55 x 55 x .5 (16.8 x 16.8 x .2) | 36 Walls, 4 Corners | 11,452 (43,351) | 1028 (466.3) | Black |
Options
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|
| 8730 | Modular Model Side Wall | 72 x 18 x 6 (1828.8 x 457.2 x 152.4) | 19 (8.6) |
| 8731 | Modular Model Corner Wall | 24 x 24 x 6 (609.6 x 609.6 x 152.4) | 9 (4.1) |
Ultra-Containment Berm Options
Get It "All-In-One"
Part #: 8670
The new “All-In-One” option for the Ultra-Containment Berm has all of the extra protection you need built right in. Both the Ground Tarp and Track Belts are pre-attached (welded or heat-sealed) depending on the materials used to make your berm. Once you unpackage the berm and set it up, it will be ready to use with the additional protection already in place.
Ultra-Berm Repair Kit
Part #: 8389
The Ultra-Berm Repair Kit contains everything needed to make most repairs to any Ultra-Containment Berm. Kit includes: (1) Tool Box, (1) Heat Gun – 110 volt, (1) Hand Roller, (4) replacement handles, (50) each of the following: 2” round patches, 4” round patches, 4”x12” patches.
For smaller repairs, an 11” x 36” piece of Ultra-Containment Berm material is available. Please contact us for more information.
Frequently Asked Questions
The triangular-shaped support blocks are polymer-coated foam and are 72”L x 16”W x 6”H
There are a number of complete Gorilla Berm systems available (includes all support blocks, four support block corners, and a liner) ranging in size from 7′ x 13′ to 55′ x 55′. If the size of your spill containment area isn’t one of the sizes listed, please contact us and we can help you determine how many / what size of each component is needed.
We recommend using #9 rebar (1” dia.) to secure the liner to the support block structure.
Rebar is not provided.
A heavy-duty, 22oz., anti-skid, coated vinyl fabric (PVC) is the standard. Please contact us for availability of other materials.
Yes, all components (support blocks, support block corners, liners) are available separately.

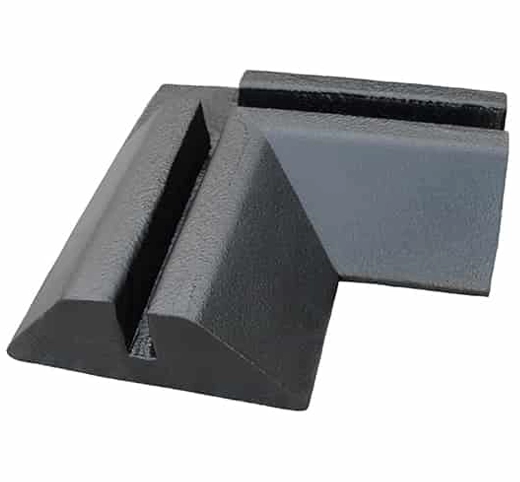

Yes, the Ultra-Containment Berm, Modular Model uses support blocks specifically designed for the corners of the containment area.
The liner is PVC and is compatible with a wide range of chemicals. For specific chemical information, please refer to our chemical compatibility guide.
More Info/Downloads
Helps Comply with These Rules & Regulations
- EPA Container Storage Regulation 40 CFR 264.175
- Spill Prevention, Control and Countermeasure Act (SPCC) 40 CFR 112
Additional Product Information
Uniform Product Codes (UPCs)
- UPC 808416087406 Ultra-Containment Berm test model type (Part #8740)
- UPC 808416087413 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8741)
- UPC 808416087420 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8742)
- UPC 808416087437 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8743)
- UPC 808416087444 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8744)
- UPC 808416087451 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8745)
- UPC 808416087468 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8746)
- UPC 808416087475 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8747)
- UPC 808416087482 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8748)
- UPC 808416087499 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8749)
- UPC 808416087307 Containment Berm (Gorilla Berm) Modular Model Side Wall (Part #8730)
- UPC 808416087314 Containment Berm (Gorilla Berm) Modular Model Corner Wall (Part #8731)
- FAQs
-
Frequently Asked Questions
The triangular-shaped support blocks are polymer-coated foam and are 72”L x 16”W x 6”H
There are a number of complete Gorilla Berm systems available (includes all support blocks, four support block corners, and a liner) ranging in size from 7′ x 13′ to 55′ x 55′. If the size of your spill containment area isn’t one of the sizes listed, please contact us and we can help you determine how many / what size of each component is needed.
We recommend using #9 rebar (1” dia.) to secure the liner to the support block structure.
Rebar is not provided.
A heavy-duty, 22oz., anti-skid, coated vinyl fabric (PVC) is the standard. Please contact us for availability of other materials.
Yes, all components (support blocks, support block corners, liners) are available separately.
Yes, the Ultra-Containment Berm, Modular Model uses support blocks specifically designed for the corners of the containment area.
The liner is PVC and is compatible with a wide range of chemicals. For specific chemical information, please refer to our chemical compatibility guide.
- Resources & Docs
-
More Info/Downloads
- Compliance & Regs
-
Helps Comply with These Rules & Regulations
- EPA Container Storage Regulation 40 CFR 264.175
- Spill Prevention, Control and Countermeasure Act (SPCC) 40 CFR 112
- Additional Info.
-
Additional Product Information
Uniform Product Codes (UPCs)
- UPC 808416087406 Ultra-Containment Berm test model type (Part #8740)
- UPC 808416087413 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8741)
- UPC 808416087420 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8742)
- UPC 808416087437 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8743)
- UPC 808416087444 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8744)
- UPC 808416087451 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8745)
- UPC 808416087468 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8746)
- UPC 808416087475 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8747)
- UPC 808416087482 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8748)
- UPC 808416087499 Ultra-Containment Berm Modular Model (Gorilla Berm) (Part #8749)
- UPC 808416087307 Containment Berm (Gorilla Berm) Modular Model Side Wall (Part #8730)
- UPC 808416087314 Containment Berm (Gorilla Berm) Modular Model Corner Wall (Part #8731)
