Ultra-Berm Builder®
Ultra-Berm Builder®

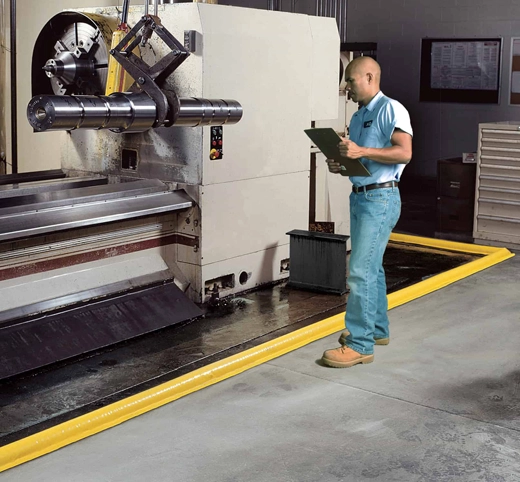

Build a barrier around machinery or equipment that is permanently mounted or cannot easily be moved
Most of UltraTech’s spill containment products are designed to be put in place and then have the potential offending “spillers” placed in or on the containment unit. But large, heavy, or previously secured/bolted down equipment or machinery can make that very difficult or impossible.
The Ultra-Berm Builder solves that problem. This component system can be built to just about any size and/or shape that might be needed for your spill containment application.
Product Highlights
- Component system provides flexibility to create a semi-permanent, high-visibility custom barrier.
- Durable, vinyl covering resists oils, coolants, and most chemicals.
- Cut-to-length and secure to floor with included sealant, then seal seams with the vinyl adhesive.
- Economical containment for leaks and spills around machinery and equipment - no need to build expensive cement or angle iron curbs.
- High-visibility yellow color draws attention to the barrier for increased safety.
- Easy removal requires only a flat-bladed shovel.
Ultra-Berm Builder - Components for 2" Model
| Part # | Model | Product Image | Quantity | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|---|---|
| 8640 | Extension Piece |  |
1/box | 300 x 5.5 x 2 (7620 x 139.7 x 50.8) | 21 (9.5) |
| 8641 | Extension Piece |  |
1/box | 180 x 5.5 x 2 (4572 x 139.7 x 50.8) | 6 (2.7) |

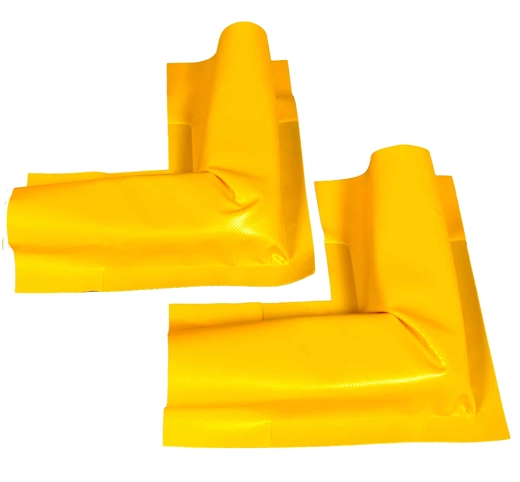

| 8642 | Corner | |
2/box | 11 x 5.5 x 2 (279.4 x 139.7 x 50.8) | 2 (.9) |

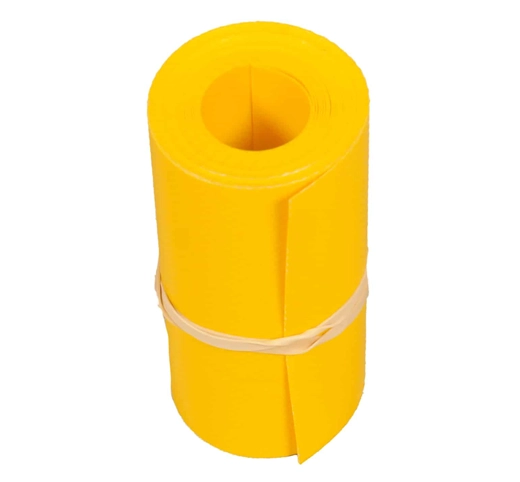

| 8643 | Connecting Collar |  |
1/box | 120 x 4 x 0 (3048 x 101.6 x 0) | 1 (.5) |
Ultra-Berm Builder - Components for 4" Model
| Part # | Model | Product Image | Quantity | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|---|---|

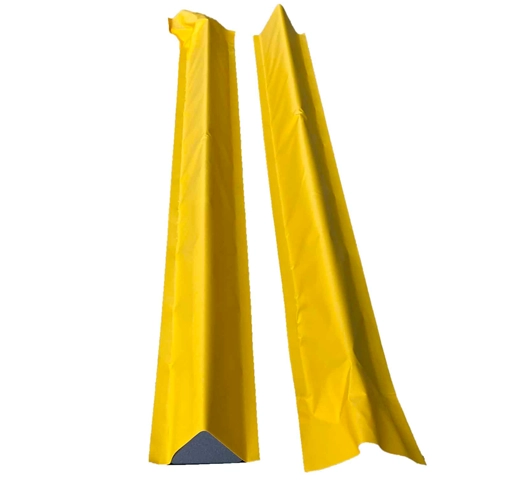

| 8674 | Wall Section |  |
2/box | 66 x 7.25 x 4 (1676.4 x 184.15 x 101.6) | 60 (27.2) |
| 8675 | Corner |  |
2/box | 12 x 7.25 x 4 (1676.4 x 184.15 x 101.6) | 3.0 (1.4) |
| 8676 | Wall End | 2/box | 7 x 7.25 x 4 (177.8 x 184.15 x 152.4) | 2 (0.9) |
Ultra-Berm Builder - Components for 6" Model
| Part # | Model | Product Image | Quantity | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|---|---|

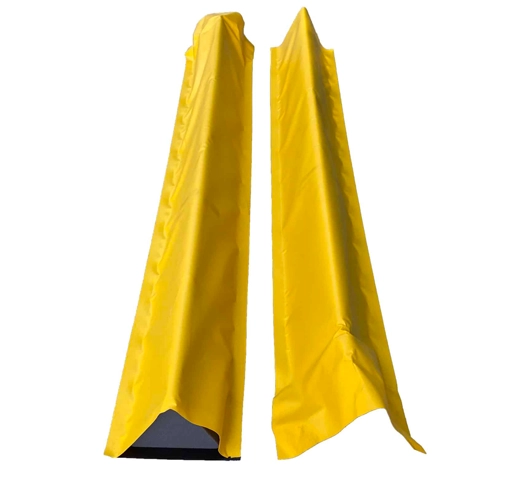

| 8677 | Wall Section |  |
2/box | 66 x 9 x 6 (1676.4 x 228.6 x 152.4) | 9 (4.08) |

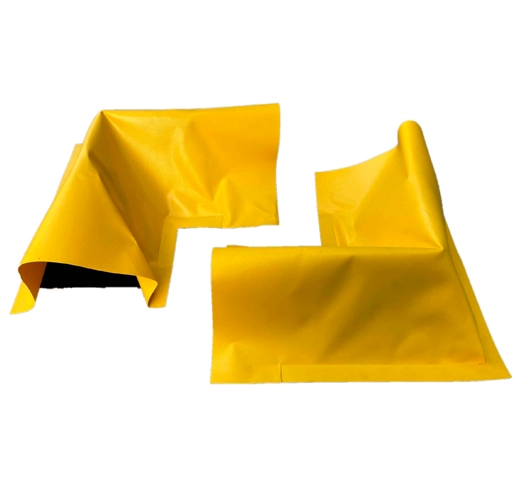

| 8678 | Corner |  |
2/box | 15 x 9 x 6 (381 x 228.6 x 152.4) | 3.0 (1.4) |

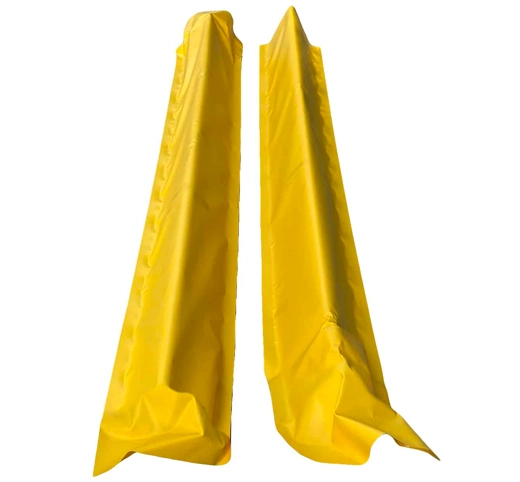

| 8679 | Wall End |  |
2/box | 7 x 9 x 6 (177.8 x 228.6 x 50.8) | 2 (0.9) |
Options
| Part # | Model | Product Image | Quantity | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|---|---|
| 8644 | Floor Sealant |  |
6/box | N/A | 1 (.5) |

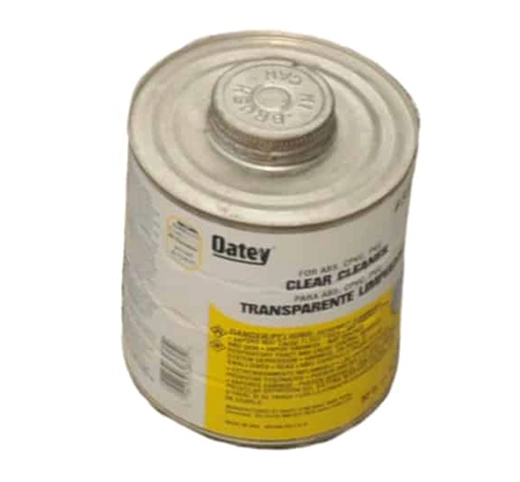

| 8645 | Vinyl Adhesive |  |
1/box | N/A | .5 (.2) |
| 8669 | Barrier Repair Material | 1/box | 120 x 4 x 0 (3048 x 101.6 x 0) | 1 (0.5) |
* The “Full Kit” contents (p/n 8640) include: (2) 25’ Ultra-Berm Builder walls, (4) Ultra-Berm Builder corners, (6) floor sealant tubes, (1) 10-foot section connector collar, and (1) 8oz. industrial vinyl adhesive.
Frequently Asked Questions
The Ultra-Berm Builder is an open-cell foam that is wrapped in vinyl.
Yes, the Ultra-Berm Builder’s sidewalls are designed to be able to be stepped on and/or rolled over with light, wheeled equipment. The open-cell foam barrier will spring back after the weight is removed.
You can always add more straight sections (Part# 8641) and/or more corners (Part# 8642) or whatever is needed for your particular application. All of the components and accessories for the Ultra-Berm Builder are available separately.
The Ultra-Berm Builder is meant to a “long-term” installation. Should it become necessary, it can be removed using a flat-bladed shovel.
The Ultra-Berm Builder is designed for use on flat, smooth surfaces.
Yes, the berm builder is designed to be easily cut if necessary. Simply use a utility knife and a straight edge (NOTE: Always wear the appropriate personal protective equipment (PPE)).
More Info/Downloads
This product may not address any specific regulations but if you have any questions, we’re here to help.
Additional Product Information
Uniform Product Codes (UPCs)
- UPC 808416086409 Ultra-Berm Builder – Full Kit Full Kit* (Part #8640)
- UPC 808416086416 Ultra-Berm Builder Extension Piece (Part #8641)
- UPC 808416086423 Ultra-Berm Builder Corner (Part #8642)
- UPC 808416086430 Ultra-Berm Builder Connecting Collar (Part #8643)
- UPC 808416101249 Ultra-Berm Builder® Wall Section (Part #8674)
- UPC 808416101256 Ultra-Berm Builder® Corner (Part #8675)
- UPC 808416101263 Ultra-Berm Builder® Wall End (Part #8676)
- UPC 808416101270 Ultra-Berm Builder® Wall Section (Part #8677)
- UPC 808416101287 Ultra-Berm Builder® Corner (Part #8678)
- UPC 808416101294 Ultra-Berm Builder® Wall End (Part #8679)
- UPC 808416086447 Ultra-Berm Builder Floor Sealant (Part #8644)
- UPC 808416086454 Ultra-Berm Builder Vinyl Adhesive (Part #8645)
- UPC 808416101201 Ultra-Berm Builder® Barrier Repair Material (Part #8669)
