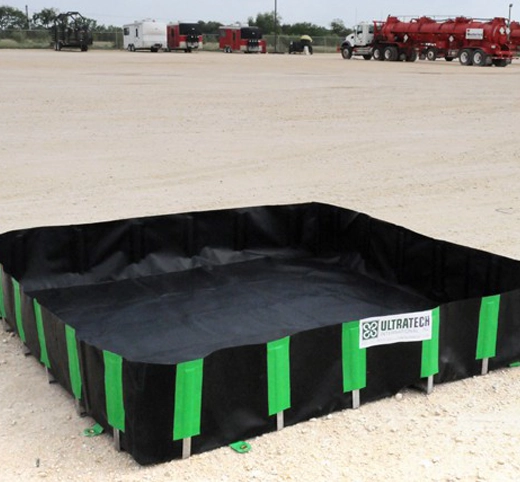

Ultra-Containment Berm®

Economy Model

Economical L-bracket berm design offers cost savings and secure spill containment

There are applications where our containment berms are used all day / every day with frequent vehicular and personnel traffic. And other applications where the berm is only set up when needed. And still, other applications where a container (drum, IBC, equipment, etc) is placed in the berm and left there for long periods of time.

It is for the second and third situation that we designed the Ultra-Containment Berm, Economy Model. As the name states, this product is less expensive than most other models so it may not offer all of the conveniences that some of them do. But rest assured, it is rugged, durable and packs plenty of its own features.

Product Highlights

L-shaped aluminum brackets provide sturdy sidewall support.

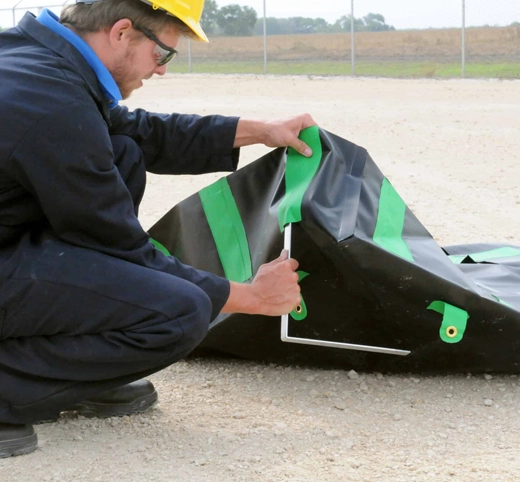

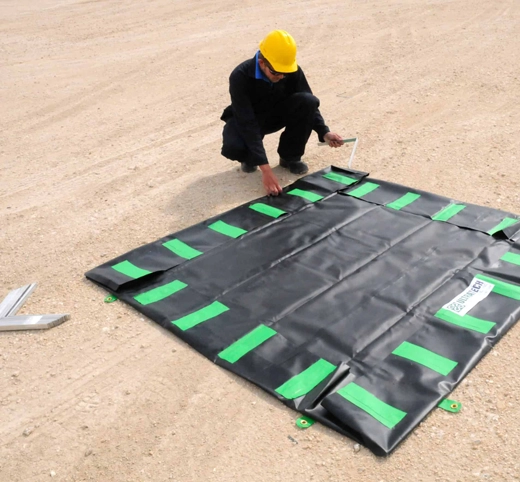

Easy assembly — brackets are quickly and easily inserted into sleeves spaced around the perimeter of containment berm.
No frames, components or excess material outside of sidewalls — excellent for use as spill containment area inside of storage sheds and other buildings or structures where floor space is a premium.
Economical spill containment for frac tanks and other large containers.
Standard materials of construction are Copolymer-2000 and Reinforced Polyethylene (RPE). Other materials available upon request.
Custom sizes available.

Ultra-Containment Berms - Economy Models - Copolymer-2000

Part #	Dimensions ft. (m)	Containment Capacity gal. (L)	Weight lbs. (kg)
8250	6 x 4 x 1 (1.8 x 1.2 x .3)	179 (677.6)	21 (9.5)
8251	6 x 6 x 1 (1.8 x 1.8 x .3)	269 (1018.3)	26 (11.8)
8252	10 x 10 x 1 (3 x 3 x .3)	748 (2831.5)	52 (23.6)
8270	20 x 10 x 1 (6.1 x 3 x .3)	1496 (5663)	88 (39.9)
8271	30 x 10 x 1 (9.1 x 3 x .3)	2244 (8494.5)	124 (56.2)
8272	40 x 10 x 1 (12.2 x 3 x .3)	2992 (11326)	160 (72.6)
8273	50 x 10 x 1 (15.2 x 3 x .3)	3740 (14157.4)	196 (88.9)
8274	12 x 12 x 1 (3.7 x 3.7 x .3)	1077 (4076.9)	69 (31.3)
8275	20 x 12 x 1 (6.1 x 3.7 x .3)	1795 (6794.8)	102 (46.3)
8276	30 x 12 x 1 (9.1 x 3.7 x .3)	2692 (10190.3)	144 (65.3)
8277	40 x 12 x 1 (12.2 x 3.7 x .3)	3590 (13589.6)	185 (83.9)
8278	50 x 12 x 1 (15.2 x 3.7 x .3)	4488 (16988.9)	227 (103)
8253	60 x 12 x 1 (18.3 x 3.7 x .3)	5385 (20384.4)	268 (121.6)
8279	15 x 15 x 1 (4.6 x 4.6 x .3)	1683 (6370.8)	95 (43.1)
8280	20 x 15 x 1 (6.1 x 4.6 x .3)	2244 (8494.5)	118 (53.5)
8281	30 x 15 x 1 (9.1 x 4.6 x .3)	3366 (12741.7)	165 (74.8)
8282	40 x 15 x 1 (12.2 x 4.6 x .3)	4488 (16988.9)	212 (96.2)
8254	50 x 15 x 1 (15.2 x 4.6 x .3)	5610 (21236.2)	259 (117.5)
8255	66 x 15 x 1 (20.1 x 4.6 x .3)	7405 (28031)	334 (151.5)

Ultra-Containment Berms - Economy Models - Reinforced Polyethylene (RPE) - 30 Mil

Part #	Dimensions ft. (m)	Containment Capacity gal. (L)	Weight lbs. (kg)
8240	6 x 6 x 1 (1.8 x 1.8 x 0.3)	269 (1018.28)	9.0 (4.1)
8241	10 x 10 x 1 (3 x 3 x 0.3)	748 (2831.49)	23.0 (10.4
8242	12 x 12 x 1 (3.7 x 3.7 x 0.3)	1077 (4076.88)	29.0 (13.2)
8243	25 x 12 x 1 (7.6 x 3.7 x 0.3)	2244 (8494.464)	49.0 (22.2)
8244	50 x 10 x 1 (15.2 x 3 x 0.3)	3740 (14157.44)	84.0 (38.1
8245	50 x 12 x 1 (15.2 x 3.7 x 0.3)	4488 (16989)	88.0 (40.0)

FAQs
Resources & Docs
Compliance & Regs
Additional Info.

Frequently Asked Questions

PVC: Max 150°F, Min: -20°F

Copolymer-2000: Max 160°F, Min: -25°F

Copolymer 2000 – 25 oz. / sq. yard

PVC – 22 oz. / sq. yard

If the chemical is not listed in the guide, chances are that chemical has not been tested with the material. If we cannot get a definitive answer from our engineering staff, we can send a testing kit to you for a 30-day immersion test.

Yes, we can make containment berms in custom sizes in virtually any length and width.

Custom heights are available for most of the Ultra-Containment Berms. Please contact us for more information.

Ultra-Containment Berms ship from our factory in N. Augusta, SC 29860 at class 125.

The repair kit is simply an 11” x 36” piece of matching material and instructions on how to apply it to the berm. The only other item required is an industrial heat gun.

The ground tarp provides added protection from punctures or damage from beneath the Ultra-Containment Berm. Standard procedure is to sweep the area of any rocks or debris, then place the ground tarp down followed by the containment berm.

For smaller standard sized berms, the 11′ x 11′ ground tarp is recommended (Part# 8311). For larger berms, the general rule of thumb is to add 4′ to both the length and width dimensions of the berm. (e.g. a 16′ x 64′ ground tarp would be used for a 12′ x 60′ containment berm.)

Track belts are strips of very heavy-duty material (Reinforced PVC) that lay down inside of the berm. They take the wear and tear from tires of the vehicles that are driving in and out of the berms. Thereby extending the life of the product.

More Info/Downloads

Helps Comply with These Rules & Regulations

EPA Container Storage Regulation 40 CFR 264.175
ADA Accessibility Guidelines for Buildings and Facilities (ADAAG)

Additional Product Information

Uniform Product Codes (UPCs)

UPC 808416082500 Ultra-Containment Berm Economy Model (Part #8250)
UPC 808416082517 Ultra-Containment Berm Economy Model (Part #8251)
UPC 808416082524 Ultra-Containment Berm Economy Model (Part #8252)
UPC 808416082708 Ultra-Containment Berm Economy Model (Part #8270)
UPC 808416082715 Ultra-Containment Berm Economy Model (Part #8271)
UPC 808416082722 Ultra-Containment Berm Economy Model (Part #8272)
UPC 808416082739 Ultra-Containment Berm Economy Model (Part #8273)
UPC 808416082746 Ultra-Containment Berm Economy Model (Part #8274)
UPC 808416082753 Ultra-Containment Berm Economy Model (Part #8275)
UPC 808416082760 Ultra-Containment Berm Economy Model (Part #8276)
UPC 808416082777 Ultra-Containment Berm Economy Model (Part #8277)
UPC 808416082784 Ultra-Containment Berm Economy Model (Part #8278)
UPC 808416082531 Ultra-Containment Berm Economy Model (Part #8253)
UPC 808416082791 Ultra-Containment Berm Economy Model (Part #8279)
UPC 808416082807 Ultra-Containment Berm Economy Model (Part #8280)
UPC 808416082814 Ultra-Containment Berm Economy Model (Part #8281)
UPC 808416082821 Ultra-Containment Berm Economy Model (Part #8282)
UPC 808416082548 Ultra-Containment Berm Economy Model (Part #8254)
UPC 808416082555 Ultra-Containment Berm Economy Model (Part #8255)
UPC 808416101829 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #8240)
UPC 808416101836 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #8241)
UPC 808416101843 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #8242)
UPC 808416101850 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #8243)
UPC 808416101867 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #8244)
UPC 808416101874 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #8245)
