Ultra-Containment Berm®

Foam Wall Plus Model

Versatile spill containment berm uses replaceable foam supports to minimize service and maintenance time

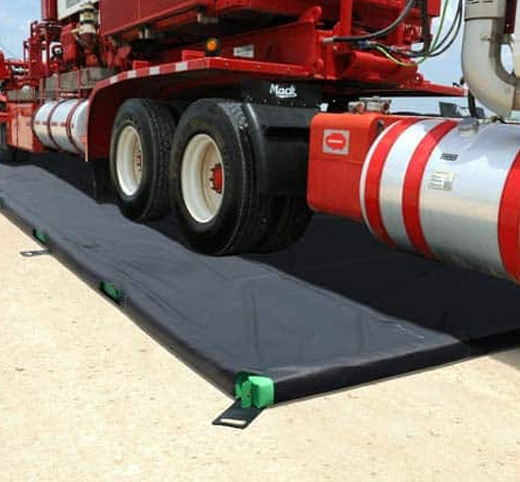

The ability to drive in and drive out of a containment berm makes daily operations much simpler and hassle-free. Foam sidewalls are an exceptional way to provide structure to a berm’s sidewalls while allowing effortless entry and exit.

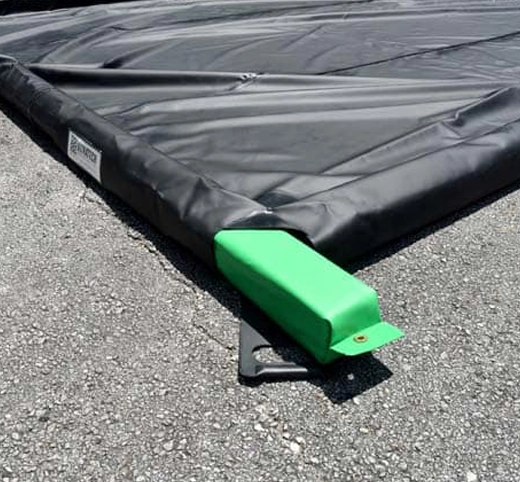

But foam doesn’t last forever. The removable foam supports in the Ultra-Containment Berm, Foamwall Plus Model makes replacement of old or damaged foam, quick and easy. Simply pull the old one out and slide the new one in.

Product Highlights

Flexible containment berm uses foam supports for sidewall structure - allows for true “drive-in/drive-out” applications.
Removable supports are quickly and easily replaced if necessary - eliminates maintenance downtime.
Compact when folded (with supports removed) for more effective and more economical shipping and storage.
Heavy-duty materials withstand harsh conditions and chemical exposure.
Built-in handles help with transport and placement.
Custom colored foam supports available for easy identification or company branding. Please contact us for details.
Helps meet SPCC and EPA Container Storage Regulation 40 CFR 264.175 Spill Containment Regulations.

$foam-wall-plus-berm-frac-site$

Ultra-Containment Berm - Foam Wall Plus Model - Copolymer-2000

Part #	Model	Dimensions in. (mm)	Containment Capacity gal. (L)	Weight lbs. (kg)
8950	Foam Wall Plus Model – Copolymer-2000	4 x 4 x 0.3 (1.2 x 1.2 x 0.1)	39 (148)	17 (7.7)
8951	Foam Wall Plus Model – Copolymer-2000	10 x 10 x 0.3 (3 x 3 x 0.1)	249 (943)	51 (23.1)
8952	Foam Wall Plus Model – Copolymer-2000	20 x 10 x 0.3 (6.1 x 3 x 0.1)	498 (1,885)	85 (38,6)
8953	Foam Wall Plus Model – Copolymer-2000	30 x 10 x 0.3 (9.1 x 3 x 0.1)	748 (2,831)	119 (54)
8954	Foam Wall Plus Model – Copolymer-2000	50 x 10 x 0.3 (15.2 x 3 x 0.1)	1246 (4,716)	188 (85.2)
8955	Foam Wall Plus Model – Copolymer-2000	20 x 12 x 0.3 (6.1 x 3.7 x 0.1)	598 (2,263)	188 (85.3)
8956	Foam Wall Plus Model – Copolymer-2000	30 x 12 x 0.3 (9.1 x 3.7 x 0.1)	897 (3,396)	139 (63)
8957	Foam Wall Plus Model – Copolymer-2000	50 x 12 x 0.3 (15.2 x 3.7 x 0.1)	1,496 (5,663)	215 (97.5)

Ultra-Containment Berm - Foam Wall Plus Model - PVC 22 oz.

Part #	Model	Dimensions in. (mm)	Containment Capacity gal. (L)	Weight lbs. (kg)
8958	Foam Wall Plus Model – PVC 22 oz.	4 x 4 x 0.3 (1.2 x 1.2 x 0.1)	39 (148)	20 (9)
8959	Foam Wall Plus Model – PVC 22 oz.	10 x 10 x 0.3 (3 x 3 x 0.1)	249 (943)	65 (29)
8960	Foam Wall Plus Model – PVC 22 oz.	20 x 10 x 0.3 (6.1 x 3 x 0.1)	498 (1,885)	210 (95)
8961	Foam Wall Plus Model – PVC 22 oz.	30 x 10 x 0.3 (9.1 x 3 x 0.1)	748 (2,831)	220 (100)
8962	Foam Wall Plus Model – PVC 22 oz.	50 x 10 x 0.3 (15.2 x 3 x 0.1)	1246 (4,716)	240 (109)
8963	Foam Wall Plus Model – PVC 22 oz.	20 x 12 x 0.3 (6.1 x 3.7 x 0.1)	598 (2,263)	220 (100)
8964	Foam Wall Plus Model – PVC 22 oz.	30 x 12 x 0.3 (9.1 x 3.7 x 0.1)	897 (3,396)	230 (104)
8965	Foam Wall Plus Model – PVC 22 oz.	50 x 12 x 0.3 (15.2 x 3.7 x 0.1)	1,496 (5,663)	250 (113)

Options

Part #	Model	Dimensions in. (mm)	Weight lbs. (kg)
8966	Replacement Foam – 4’ – 20 MIL PVC	4 x 0.3 x 0.3 (1.2 x 0.1 x 0.1)	1.8 (0.82)
8967	Replacement Foam – 6’ – 20 MIL PVC	6 x 0.3 x 0.3 (1.8 x 0.1 x 0.1)	2.6 (1.2)
8949	Replacement Foam – 10’ – 20 MIL PVC	10 x 0.3 x 0.3 (3 x 0.1 x 0.1)	5 (2.27)

Ultra-Containment Berm Options

Get It "All-In-One"

Part #: 8670

The new “All-In-One” option for the Ultra-Containment Berm has all of the extra protection you need built right in. Both the Ground Tarp and Track Belts are pre-attached (welded or heat-sealed) depending on the materials used to make your berm. Once you unpackage the berm and set it up, it will be ready to use with the additional protection already in place.

Ultra-Berm Repair Kit

Part #: 8389

The Ultra-Berm Repair Kit contains everything needed to make most repairs to any Ultra-Containment Berm. Kit includes: (1) Tool Box, (1) Heat Gun – 110 volt, (1) Hand Roller, (4) replacement handles, (50) each of the following: 2” round patches, 4” round patches, 4”x12” patches.

For smaller repairs, an 11” x 36” piece of Ultra-Containment Berm material is available. Please contact us for more information.

FAQs
Resources & Docs
Compliance & Regs
Additional Info.

Frequently Asked Questions

PVC: Max 150°F, Min: -20°F

Copolymer-2000: Max 160°F, Min: -25°F

Copolymer 2000 – 25 oz. / sq. yard

PVC – 22 oz. / sq. yard

If the chemical is not listed in the guide, chances are that chemical has not been tested with the material. If we cannot get a definitive answer from our engineering staff, we can send a testing kit to you for a 30-day immersion test.

Yes, we can make containment berms in custom sizes in virtually any length and width; however, we can only do so when the dimensions are even numbers (e.g., 4′, 6′, 8′, etc.).

Custom heights are available for most of the Ultra-Containment Berms. Please contact us for more information.

Ultra-Containment Berms ship from our factory in N. Augusta, SC 29860 at class 125.

The repair kit is simply an 11” x 36” piece of matching material and instructions on how to apply it to the berm. The only other item required is an industrial heat gun.

The ground tarp provides added protection from punctures or damage from beneath the Ultra-Containment Berm. Standard procedure is to sweep the area of any rocks or debris, then place the ground tarp down followed by the containment berm.

For smaller standard sized berms, the 11′ x 11′ ground tarp is recommended (Part# 8311). For larger berms, the general rule of thumb is to add 4′ to both the length and width dimensions of the berm. (e.g. a 16′ x 64′ ground tarp would be used for a 12′ x 60′ containment berm.)

Track belts are strips of very heavy-duty material (Reinforced PVC) that lay down inside of the berm. They take the wear and tear from tires of the vehicles that are driving in and out of the berms. Thereby extending the life of the product.

More Info/Downloads

Helps Comply with These Rules & Regulations

EPA Container Storage Regulation 40 CFR 264.175
Spill Prevention, Control and Countermeasure Act (SPCC) 40 CFR 112

Additional Product Information

Uniform Product Codes (UPCs)

UPC 808416100884 Ultra-Containment Berm Foam Wall Plus Model – Copolymer-2000 (Part #8950)
UPC 808416100891 Ultra-Containment Berm Foam Wall Plus Model – Copolymer-2000 (Part #8951)
UPC 808416100907 Ultra-Containment Berm Foam Wall Plus Model – Copolymer-2000 (Part #8952)
UPC 808416100914 Ultra-Containment Berm Foam Wall Plus Model – Copolymer-2000 (Part #8953)
UPC 808416100921 Ultra-Containment Berm Foam Wall Plus Model – Copolymer-2000 (Part #8954)
UPC 808416100938 Ultra-Containment Berm Foam Wall Plus Model – Copolymer-2000 (Part #8955)
UPC 808416100945 Ultra-Containment Berm Foam Wall Plus Model – Copolymer-2000 (Part #8956)
UPC 808416100952 Ultra-Containment Berm Foam Wall Plus Model – Copolymer-2000 (Part #8957)
UPC 808416100969 Ultra-Containment Berm Foam Wall Plus Model – PVC 22 oz. (Part #8958)
UPC 808416100976 Ultra-Containment Berm Foam Wall Plus Model – PVC 22 oz. (Part #8959)
UPC 808416100983 Ultra-Containment Berm Foam Wall Plus Model – PVC 22 oz. (Part #8960)
UPC 808416100990 Ultra-Containment Berm Foam Wall Plus Model – PVC 22 oz. (Part #8961)
UPC 808416101003 Ultra-Containment Berm Foam Wall Plus Model – PVC 22 oz. (Part #8962)
UPC 808416101010 Ultra-Containment Berm Foam Wall Plus Model – PVC 22 oz. (Part #8963)
UPC 808416101027 Ultra-Containment Berm Foam Wall Plus Model – PVC 22 oz. (Part #8964)
UPC 808416101034 Ultra-Containment Berm Foam Wall Plus Model – PVC 22 oz. (Part #8965)
UPC 808416101041 Ultra-Containment Berm Replacement Foam – 4’ – 20 MIL PVC (Part #8966)
UPC 808416101058 Ultra-Containment Berm Replacement Foam – 6’ – 20 MIL PVC (Part #8967)
UPC 808416102352 Ultra-Containment Berm Replacement Foam – 10’ – 20 MIL PVC (Part #8949)
