ULTRA-DRAIN SEAL CLEAR MODEL

Chemtech International Inc. is an exclusive distributor of UltraTech International Inc., the industry-leading manufacturer of stormwater management and erosion control products. All UltraTech International Inc. products are designed to meet the New Stormwater Management Regulations of the EPA’s Clean Water Act, to help businesses maximize operational efficiency while protecting the environment.

What is stormwater?

Stormwater is rainwater or melted snow that runs off streets, lawns, and other sites, which is typically absorbed into the ground and ultimately flows into streams and rivers. Impervious surfaces such as pavement and roofs, however, prevent stormwater to naturally soak into the ground. The water instead runs rapidly into storm drains, sewer systems, and drainage ditches, which can cause a wide range of problems, including downstream flooding, stream bank erosion, sewer overflows, infrastructure damage, contaminated streams, rivers and coastal water.

Stormwater Management Products

UltraTech International Inc. offers a comprehensive line of stormwater management products to effectively prevent various types of pollutants and contaminants, including hydrocarbons, dirt and sediment, from entering waterstorm systems, storm drains, catch basins and curb inlets.

Cost-Efficient Solutions

Advanced erosion control products from UltraTech International Inc. are cost-efficient solutions to prevent erosion and minimize sediment runoff found in stormwater. All UltraTech International Inc. dewatering bags, silt dike barrier systems, and gravel bags are designed to effectively capture trapped sediment and oil and to prevent erosion and infrastructure damage.

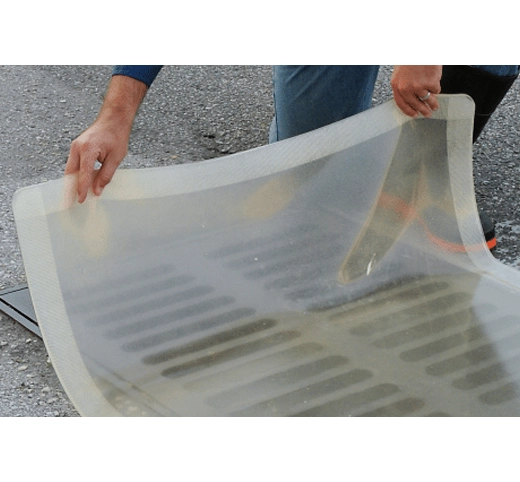

clear_drain Ultra-Drain Seal Clear Model

Ultra Drain Seal Clear Model

  • Clear material provides unobstructed view of covered drains – enables responders to make sure a complete seal is made.
  • No more guesswork about Drain Seal effectiveness – quickly see if spills are entering the drain through cracks in the surface, imperfections in the grating or other irregularities that can break the seal.

Transparent Drain Protection Allows Responders to See Spills Are Being Stopped

Features and Benefits

  • Clear material provides unobstructed view of covered drains – enables responders to make sure a complete seal is made.
  • No more guesswork about Drain Seal effectiveness – quickly see if spills are entering the drain through cracks in the surface,
    imperfections in the grating or other irregularities that can break the seal.
  • Reinforcing mesh is “sandwiched” between layers of polyurethane — increases durability and resistance to tearing.
  • Unique, urethane construction allows the pad to deform and seal off most drains — temporarily “seals” to any smooth surface.
  • Helps comply with SPCC and NPDES



Ultra-Drain Seal, Clear Models®
Part# Shape Dimensions in. (mm) Weight lbs. (kg)
2200 Square 18 x 18 x ⅜ (458 x 458 x 10) 5.0 (2.5)
2201 Square 24 x 24 x ⅜ (610 x 610 x 10) 8.0 (3.5)
2202 Square 36 x 36 x ⅜ (915 x 915 x 10) 20.0 (9.0)
2203 Square 42 x 42 x ⅜ (1,067 x 1,067 x 10) 23.0 (10.5)
2204 Square 48 x 48 x ⅜ (1,220 x 1,220 x 10) 36.0 (17.0)
2205 Square 54 x 54 x ⅜ (1,372 x 1,372 x 10) 41.0 (18.5)
2206 Rectangular 18 x 58 x ⅜ (458 x 1,474 x 10) 16.0 (7.0)
2207 Rectangular 36 x 58 x ⅜ (914 x 1,474 x 10) 26.0 (12.0)
2208 Circlular 12 dia. x ⅜ (305 x 305 x 10) 3.0 (1.5)
2209 Circlular 20 dia x ⅜ (508 dia x 10) 6.0 (3.0)
2210 Circlular 30 dia x ⅜ (762 dia x 10) 11.0 (5.0)
2211 Circlular 42 dia x ⅜ (1,067 dia x 10) 27.0 (9.0)



Other Ultra-Drain Seals Available

drain-seal-clear Ultra-Drain Seal Clear Model

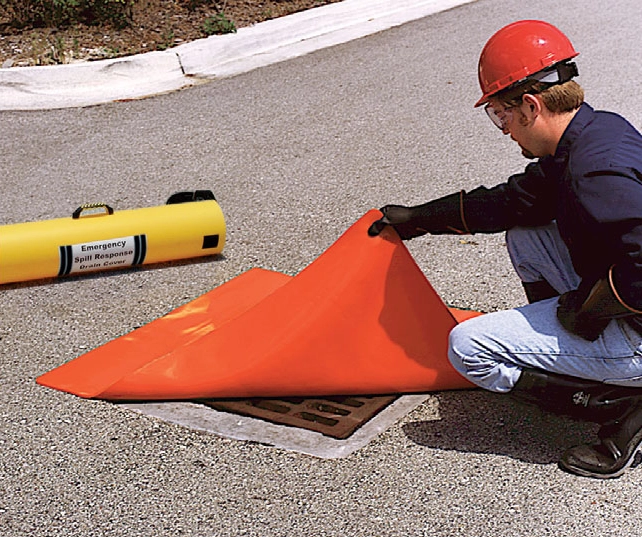

Ultra-Drain Seal®

ultra-drain-seal Ultra-Drain Seal Clear Model

Ultra-Drain Seal®, Plus Model

ultra-drain-seal-2 Ultra-Drain Seal Clear Model
drain-wall-mount Ultra-Drain Seal Clear Model

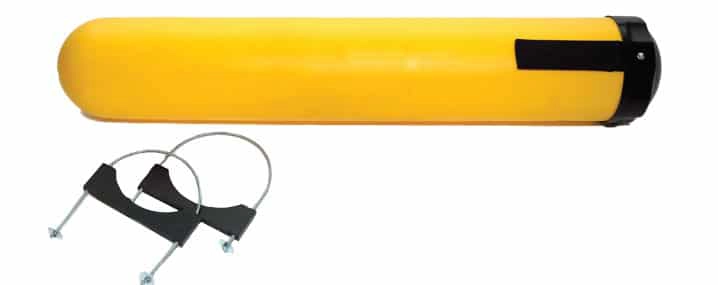

Ultra-Drain Seal Truck Mount® Also available



drain-truck-mount Ultra-Drain Seal Clear Model
Optional: Ultra-Drain Seal® Wall Mount
Part# Fits Drain Seal Sizes in. (mm)
2140 18 x 18, 24 x 24, 12 dia., and 20 dia.
(458 x 458, 610 x 610, 305 dia., and 508 dia
2142 36 x 36 and 30 dia.
(915 x 915 and 762 dia.)
2143 42 x 42, 48 x 48, and 42 dia.
(1,067 x 1,067, 1,220 x 1,220, and 1,067 dia.)





Get a Custom Quote

Fill out the form below.
