Ultra-Berm Builder® – Plus Model
Ultra-Berm Builder®
Plus Model
Drive-over barrier provide heavy-duty custom containment
There are many ways to create a custom spill containment area. Each has its own advantages. But whether it’s concrete, steel or one our own spill berms, there’s a limitation. You can’t drive over the walls. Until now.
The Ultra-Berm Builder, Plus Model has the versatility of the standard model but the additional ruggedness and mounting option for a more permanent installation that can be driven over.
Product Highlights
- Create permanent containment on concrete, asphalt and most sealed areas.
- Heavy-duty, 40-ounce, vinyl-coated fabric can withstand traffic from trucks, forklifts and other vehicles.

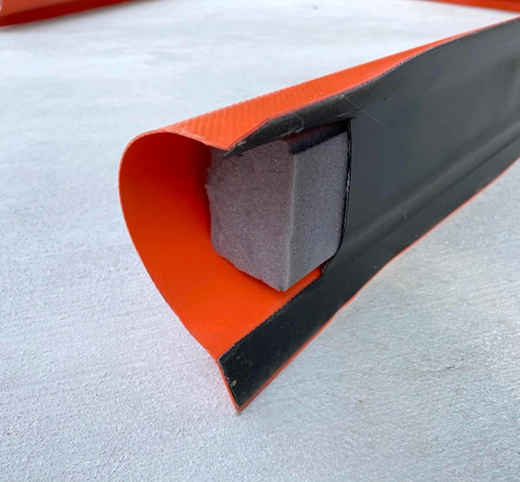

- Open-cell foam core compresses to approximately 1/4`` when driven over and springs back to shape when vehicles pass.
- Secures to the floor with sealant (not included) and is reinforced with pre drilled aluminum mounting strips (included) and steel anchors (included).
- Can be used with standard Ultra-Berm Builder.
Ultra-Berm Builder - Plus Model - Components for 2" Model
| Part # | Model | Product Image | Quantity | Dimensions in. (mm) | Weight lbs. (kg) | Notes |
|---|---|---|---|---|---|---|
| 8671 | Straight Wall Section |  |
1/box | 150 x 5.5 x 2 (3810 x 139.7 x 50.8) | 11.50 (5.22) | Includes Mounting Strips & Anchors |

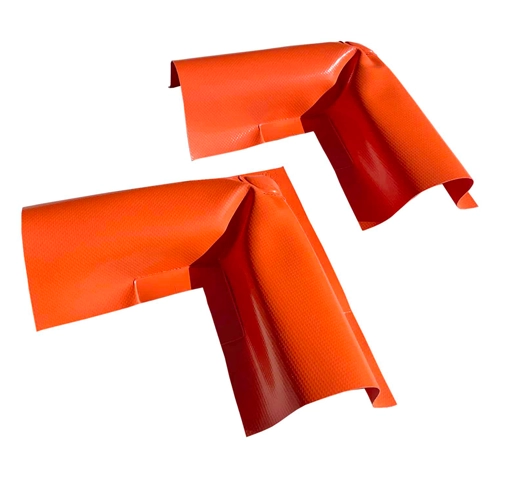

| 8672 | Corner |  |
2/box | 11 x 5.5 x 2 (279.4 x 139.7 x 50.8) | 2 (0.9) | Includes Mounting Strips & Anchors |

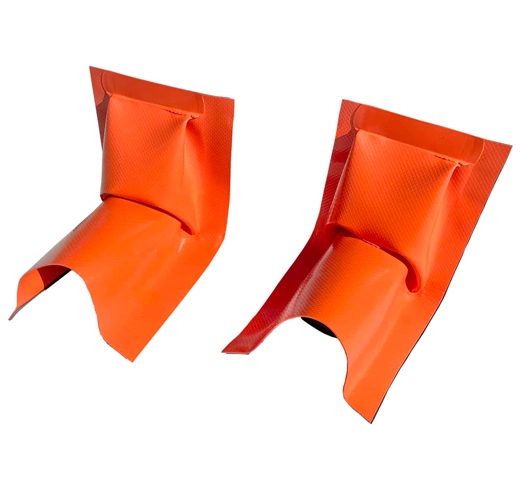

| 8673 | Wall End |  |
2/box | 8 x 5.5 x 5 (203.2 x 139.7 x 127) | 2 (0.9) | Includes Mounting Strips & Anchors |
Options
| Part # | Model | Product Image | Quantity | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|---|---|

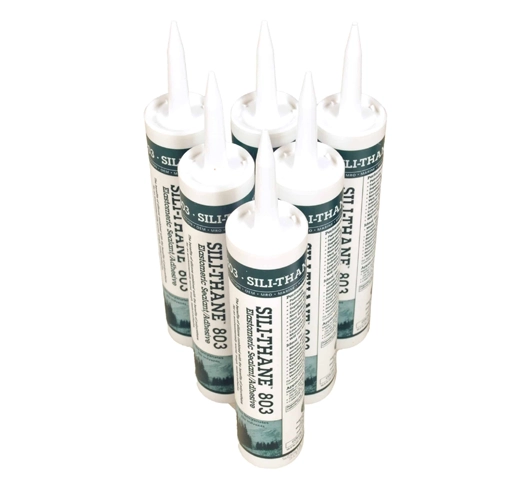

| 8644 | Floor Sealant |  |
6/box | N/A | 1 (.5) |

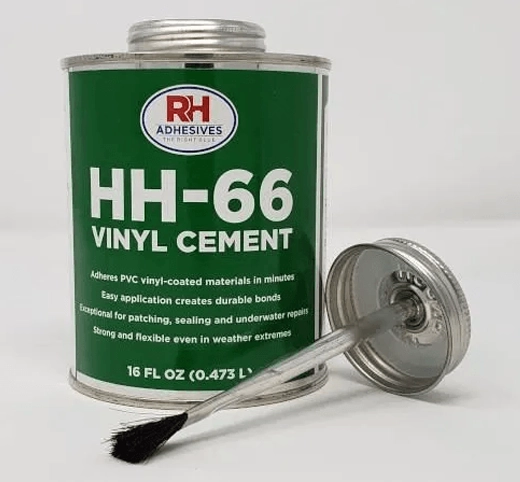

| 8645 | Vinyl Adhesive |  |
1/box | N/A | .5 (.2) |
| 8669 | Barrier Repair Material | 1/box | 120 x 4 x 0 (3048 x 101.6 x 0) | 1 (0.5) |
Frequently Asked Questions
The Ultra-Berm Builder Plus adheres to the floor with sealant (not included) and is reinforced with pre drilled aluminum mounting strips (included) and steel anchors (included).
The Ultra-Berm Builder Plus is an open-cell foam that is wrapped in vinyl.
Yes, the Ultra-Berm Builder’s sidewalls are designed to be able to be stepped on and/or rolled over with light, wheeled equipment. The open-cell foam barrier will spring back after the weight is removed.
The Ultra-Berm Builder Plus is meant to a “long-term” installation. Should it become necessary, it can be removed by first backing out the screws in the mounting strips and then using a flat-bladed shovel to remove the berm.
Yes, the Ultra-Berm Builder Plus is designed to be easily cut if necessary. Simply use a utility knife and a straight edge for the berm and a hack saw for the aluminum mounting strips (NOTE: Always wear the appropriate personal protective equipment (PPE)).
More Info/Downloads
Helps Comply with These Rules & Regulations
This product may not address any specific regulations but if you have any questions, we’re here to help.
Additional Product Information
Uniform Product Codes (UPCs)
- UPC 808416101218 Ultra-Berm Builder® Straight Wall Section (Part #8671)
- UPC 808416101225 Ultra-Berm Builder® Corner (Part #8672)
- UPC 808416101232 Ultra-Berm Builder® Wall End (Part #8673)
- UPC 808416086447 Ultra-Berm Builder Floor Sealant (Part #8644)
- UPC 808416086454 Ultra-Berm Builder Vinyl Adhesive (Part #8645)
- UPC 808416101201 Ultra-Berm Builder® Barrier Repair Material (Part #8669)
