Ultra-Containment Berm®

Economy PE Model

Lightweight and economical L-bracket berm design provides secure spill containment

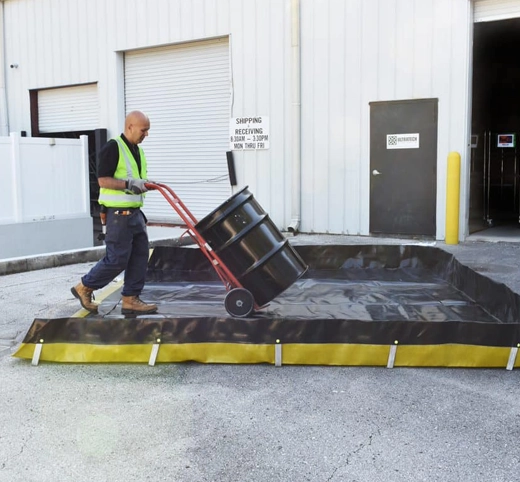

Just like the standard Economy Model Ultra-Containment Berm, this PE model uses a reinforced polyethylene (RPE) 30-mil liner for maximum durability. The L-shaped aluminum brackets provide sturdy sidewalls, yet its frameless design makes it quick to deploy inside or outside.

Available in many sizes, including custom sizes, the Ultra-Containment Berm – PE Model is ideal for either temporary or long-term storage and spill containment for anything from a single IBC to a large frac tank.

Product Highlights

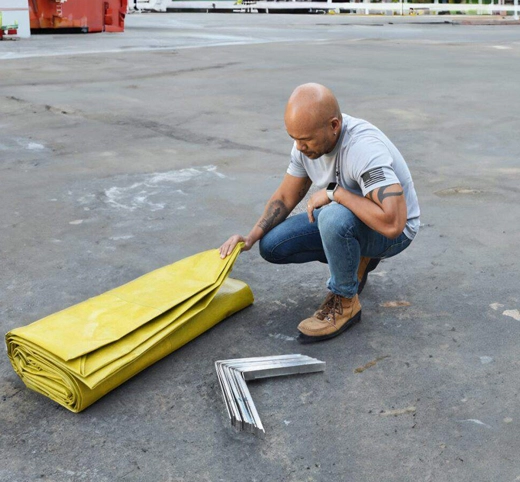

L-shaped aluminum brackets provide sturdy sidewall support.
12” sidewall contains spills in drilling and fracking locations.
Two-color (black/yellow) material makes tears and punctures easier to identify – simply look for the opposite color.
No frames, components or excess material outside of sidewalls — excellent for use as spill containment area inside of storage sheds and other buildings or structures where floor space is a premium.
Economical spill containment for frac tanks and other large containers.
Custom sizes available.

Part #	Dimensions ft. (m)	Containment Capacity gal. (L)	Weight lbs. (kg)
8240	6 x 6 x 1 (1.8 x 1.8 x 0.3)	269 (1018.28)	9.0 (4.1)
8241	10 x 10 x 1 (3 x 3 x 0.3)	748 (2831.49)	23.0 (10.4
8242	12 x 12 x 1 (3.7 x 3.7 x 0.3)	1077 (4076.88)	29.0 (13.2)
8243	25 x 12 x 1 (7.6 x 3.7 x 0.3)	2244 (8494.464)	49.0 (22.2)
8244	50 x 10 x 1 (15.2 x 3 x 0.3)	3740 (14157.44)	84.0 (38.1
8245	50 x 12 x 1 (15.2 x 3.7 x 0.3)	4488 (16989)	88.0 (40.0)
2858	4 x 4 x 1 (1.2 x 1.2 x 0.3)	119 (450.46)	8 (3.63)
2859	6 x 4 x 1 (1.8 x 1.2 x 0.3)	179 (677.59)	10 (4.54)
2860	8 x 6 x 1 (2.4 x 1.8 x 0.3)	359 (1359)	13 (5.9)
2861	8 x 8 x 1 (2.4 x 2.4 x 0.3)	478 (1809.43)	17 (7.71)
2862	20 x 10 x 1 (6.1 x 3 x 0.3)	1496 (5663)	50 (22.68)
2863	30 x 10 x 1 (9.1 x 3 x 0.3)	2244 (8494.46)	53 (24.04)
2864	40 x 10 x 1 (12.2 x 3 x 0.3)	2992 (11326)	67 (30.39)
2865	20 x 12 x 1 (6.1 x 3.7 x 0.3)	1795 (6794.81)	43 (19.50)
2866	30 x 12 x 1 (9.1 x 3.7 x 0.3)	2692 (10190.33)	59 (26.76)
2867	40 x 12 x 1 (12.2 x 3.7 x 0.3)	3590 (13589.63)	74 (33.57)
2868	60 x 12 x 1 (18.3 x 3.7 x 0.3)	5385 (20384.44)	105 (47.63)
2869	50 x 15 x 1 (15.2 x 4.6 x 0.3)	5610 (21236.16)	132 (59.87)
2870	60 x 15 x 1 (18.3 x 4.6 x 0.3)	6732 (25483.39)	151 (68.49)

Options

Part #	Model	Product Image	Dimensions in. (mm)	Weight lbs. (kg)
8298	PE Repair Tape 4″		600 x 4 x 6 (15240 x 101.6 x 152.4)	3 (1.4)
8299	PE Repair Tape 6″		600 x 6 x 6 (15240 x 152.4 x 152.4)	6 (2.72)

FAQs
Resources & Docs
Compliance & Regs
Additional Info.

Frequently Asked Questions

PVC: Max 150°F, Min: -20°F
Copolymer-2000: Max 160°F, Min: -25°F

If the chemical is not listed in the guide, chances are that chemical has not been tested with the material. If we cannot get a definitive answer from our engineering staff, we can send a testing kit to you for a 30-day immersion test.

Yes, we can make containment berms in custom sizes in virtually any length and width.

Custom heights are available for most of the Ultra-Containment Berms. Please contact us for more information.

Ultra-Containment Berms ship from our factory in N. Augusta, SC 29860 at class 125.

The repair kit is simply an 11” x 36” piece of matching material and instructions on how to apply it to the berm. The only other item required is an industrial heat gun.

The ground tarp provides added protection from punctures or damage from beneath the Ultra-Containment Berm. Standard procedure is to sweep the area of any rocks or debris, then place the ground tarp down followed by the containment berm.

For smaller standard sized berms, the 11′ x 11′ ground tarp is recommended (Part# 8311). For larger berms, the general rule of thumb is to add 4′ to both the length and width dimensions of the berm. (e.g. a 16′ x 64′ ground tarp would be used for a 12′ x 60′ containment berm.)

Track belts are strips of very heavy-duty material (Reinforced PVC) that lay down inside of the berm. They take the wear and tear from tires of the vehicles that are driving in and out of the berms. Thereby extending the life of the product.

More Info/Downloads

Helps Comply with These Rules & Regulations

EPA Container Storage Regulation 40 CFR 264.175
ADA Accessibility Guidelines for Buildings and Facilities (ADAAG)

Additional Product Information

Uniform Product Codes (UPCs)

UPC 808416101829 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #8240)
UPC 808416101836 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #8241)
UPC 808416101843 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #8242)
UPC 808416101850 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #8243)
UPC 808416101867 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #8244)
UPC 808416101874 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #8245)
UPC 808416102482 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #2858)
UPC 808416102499 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #2859)
UPC 808416102505 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #2860)
UPC 808416102512 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #2861)
UPC 808416102529 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #2862)
UPC 808416102536 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #2863)
UPC 808416102543 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #2864)
UPC 808416102550 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #2865)
UPC 808416102567 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #2866)
UPC 808416102574 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #2867)
UPC 808416102581 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #2868)
UPC 808416102598 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #2869)
UPC 808416102604 Ultra-Containment Berm® Economy Model – Reinforced Polyethylene (RPE) – 30 Mil (Part #2870)
UPC 808416102468 Ultra-Containment Berm® PE Repair Tape 4″ (Part #8298)
UPC 808416102475 Ultra-Containment Berm® PE Repair Tape 6″ (Part #8299)
