Ultra-Containment Berm® – Stake Wall Model
Ultra-Containment Berm®
Stake Wall Model

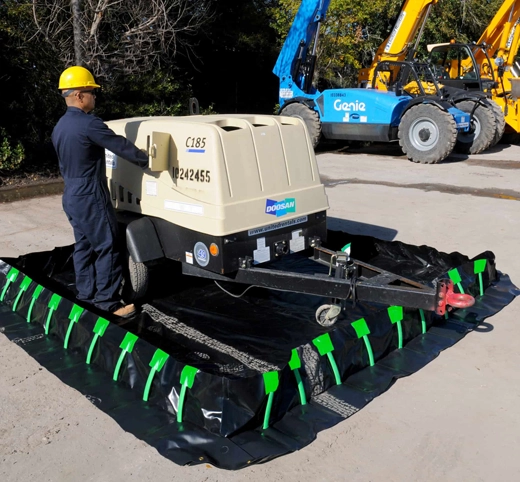

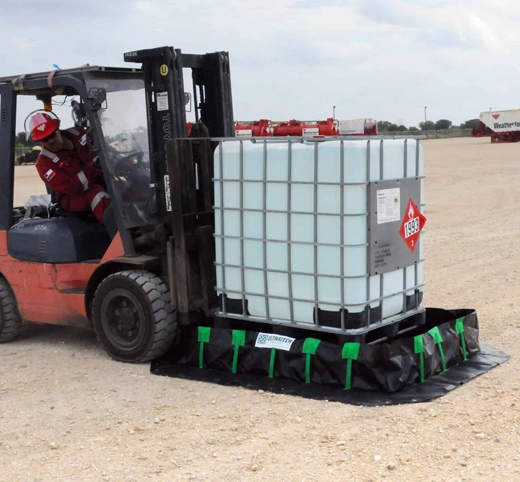

Portable secondary containment berm for drums, frac tanks, equipment and vehicles
The Ultra-Containment Berm, Stake Wall Model is a portable berm that helps capture leaks, drips, and spills to prevent them from contaminating and polluting the environment.

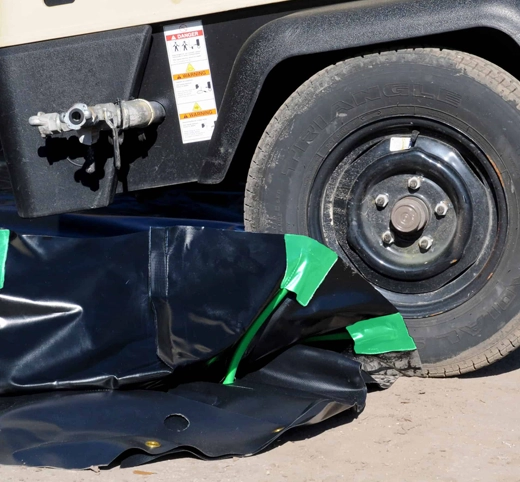

The stake wall model’s design features flexible polyurethane stakes that allow the sidewalls to spring into place automatically –even after being bent in either direction. This makes it perfect for spill sites or containment areas because it allows drums and trucks to roll over the walls without breaking their upright structure.
Product Highlights
- Easily folds for transport.
- No set-up required - unfold and the sidewalls automatically spring into their vertical position.
- Custom sizes available.
- Vertical sidewall supports located every 12``. Each Support features a built-in ``living hinge`` at its base, which allows sidewalls to collapse in either direction. Collapsed sidewalls spring back automatically.
Ultra-Containment Berm - Stake Wall Models
| Part # | Dimensions in. (mm) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|---|
| 8208 | 6 x 4 x 1 (1.8 x 1.2 x .3) | 179 (677.6) | 37 (16.8) |
| 8209 | 6 x 6 x 1 (1.8 x 1.8 x .3) | 269 (1018.3) | 46 (20.9) |
| 8210 | 10 x 10 x 1 (3 x 3 x .3) | 748 (2831.5) | 87 (39.5) |
| 8220 | 20 x 10 x 1 (6.1 x 3 x .3) | 1496 (5663) | 150 (68) |
| 8221 | 30 x 10 x 1 (9.1 x 3 x .3) | 2244 (8494.5) | 208 (94.3) |
| 8222 | 40 x 10 x 1 (12.2 x 3 x .3) | 2992 (11326) | 266 (120.7) |
| 8223 | 50 x 10 x 1 (15.2 x 3 x .3) | 3740 (14157.4) | 325 (147.4) |
| 8224 | 12 x 12 x 1 (3.7 x 3.7 x .3) | 1077 (4076.9) | 113 (51.3) |
| 8225 | 20 x 12 x 1 (6.1 x 3.7 x .3) | 1795 (6794.8) | 162 (73.5) |
| 8226 | 30 x 12 x 1 (9.1 x 3.7 x .3) | 2692 (10190.3) | 223 (101.2) |
| 8227 | 40 x 12 x 1 (12.2 x 3.7 x .3) | 3590 (13589.6) | 284 (128.8) |
| 8228 | 50 x 12 x 1 (15.2 x 3.7 x .3) | 4488 (16988.9) | 345 (156.5) |
| 8229 | 60 x 12 x 1 (18.3 x 3.7 x .3) | 5385 (20384.4) | 406 (184.2) |
| 8230 | 15 x 15 x 1 (4.6 x 4.6 x .3) | 1683 (6370.8) | 151 (68.5) |
| 8231 | 20 x 15 x 1 (6.1 x 4.6 x .3) | 2244 (8494.5) | 184 (83.5) |
| 8232 | 30 x 15 x 1 (9.1 x 4.6 x .3) | 3366 (12741.7) | 250 (113.4) |
| 8233 | 40 x 15 x 1 (12.2 x 4.6 x .3) | 4488 (16988.9) | 317 (143.8) |
| 8211 | 50 x 15 x 1 (15.2 x 4.6 x .3) | 5610 (21236.2) | 363 (164.7) |
| 8212 | 66 x 15 x 1 (20.1 x 4.6 x .3) | 7405 (28031) | 464 (210.5) |
Ultra-Containment Berm Options
Get It "All-In-One"
Part #: 8670
The new “All-In-One” option for the Ultra-Containment Berm has all of the extra protection you need built right in. Both the Ground Tarp and Track Belts are pre-attached (welded or heat-sealed) depending on the materials used to make your berm. Once you unpackage the berm and set it up, it will be ready to use with the additional protection already in place.
Ultra-Berm Repair Kit
Part #: 8389
The Ultra-Berm Repair Kit contains everything needed to make most repairs to any Ultra-Containment Berm. Kit includes: (1) Tool Box, (1) Heat Gun – 110 volt, (1) Hand Roller, (4) replacement handles, (50) each of the following: 2” round patches, 4” round patches, 4”x12” patches.
For smaller repairs, an 11” x 36” piece of Ultra-Containment Berm material is available. Please contact us for more information.
Frequently Asked Questions
PVC: Max 150°F, Min: -20°F
Copolymer-2000: Max 160°F, Min: -25°F
Copolymer 2000 – 25 oz. / sq. yard
PVC – 22 oz. / sq. yard
If the chemical is not listed in the guide, chances are that chemical has not been tested with the material. If we cannot get a definitive answer from our engineering staff, we can send a testing kit to you for a 30-day immersion test.
Yes, we can make containment berms in custom sizes in virtually any length and width.
Custom heights are available for most of the Ultra-Containment Berms. Please contact us for more information.
Ultra-Containment Berms ship from our factory in N. Augusta, SC 29860 at class 125.
The repair kit is simply an 11” x 36” piece of matching material and instructions on how to apply it to the berm. The only other item required is an industrial heat gun.
The ground tarp provides added protection from punctures or damage from beneath the Ultra-Containment Berm. Standard procedure is to sweep the area of any rocks or debris, then place the ground tarp down followed by the containment berm.
For smaller standard sized berms, the 11′ x 11′ ground tarp is recommended (Part# 8311). For larger berms, the general rule of thumb is to add 4′ to both the length and width dimensions of the berm. (e.g. a 16′ x 64′ ground tarp would be used for a 12′ x 60′ containment berm.)
Track belts are strips of very heavy-duty material (Reinforced PVC) that lay down inside of the berm. They take the wear and tear from tires of the vehicles that are driving in and out of the berms. Thereby extending the life of the product.
More Info/Downloads
Helps Comply with These Rules & Regulations
- EPA Container Storage Regulation 40 CFR 264.175
- Spill Prevention, Control and Countermeasure Act (SPCC) 40 CFR 112
Additional Product Information
Uniform Product Codes (UPCs)
- UPC 808416082081 Ultra-Containment Berm Stake Wall Model (Part #8208)
- UPC 808416082098 Ultra-Containment Berm Stake Wall Model (Part #8209)
- UPC 808416082104 Ultra-Containment Berm Stake Wall Model (Part #8210)
- UPC 808416082203 Ultra-Containment Berm Stake Wall Model (Part #8220)
- UPC 808416082210 Ultra-Containment Berm Stake Wall Model (Part #8221)
- UPC 808416082227 Ultra-Containment Berm Stake Wall Model (Part #8222)
- UPC 808416082234 Ultra-Containment Berm Stake Wall Model (Part #8223)
- UPC 808416082241 Ultra-Containment Berm Stake Wall Model (Part #8224)
- UPC 808416082258 Ultra-Containment Berm Stake Wall Model (Part #8225)
- UPC 808416082265 Ultra-Containment Berm Stake Wall Model (Part #8226)
- UPC 808416082272 Ultra-Containment Berm Stake Wall Model (Part #8227)
- UPC 808416082289 Ultra-Containment Berm Stake Wall Model (Part #8228)
- UPC 808416082296 Ultra-Containment Berm Stake Wall Model (Part #8229)
- UPC 808416082302 Ultra-Containment Berm Stake Wall Model (Part #8230)
- UPC 808416082319 Ultra-Containment Berm Stake Wall Model (Part #8231)
- UPC 808416082326 Ultra-Containment Berm Stake Wall Model (Part #8232)
- UPC 808416082333 Ultra-Containment Berm Stake Wall Model (Part #8233)
- UPC 808416082111 Ultra-Containment Berm Stake Wall Model (Part #8211)
- UPC 808416082128 Ultra-Containment Berm Stake Wall Model (Part #8212)
