Ultra-Containment Berm®

Rapid Rise Model

Sidewalls stay lowered and out of the way until they are needed

To some, a containment berm’s sidewalls mean security. To others, they are a nuisance. After all, who needs sidewalls if there’s no spill?

One of the main advantages of the Ultra-Containment Berm, Rapid Rise Model is that the sidewalls stay out of the way until they are needed. Foam in the top, outer perimeter of this containment berm’s sidewalls raise the walls with the level of the liquid should there be a spill while rigid struts provide added support. But the walls stay down and flat during normal, day-to-day, operations. Helps comply with SPCC and EPA spill containment regulations.

Product Highlights

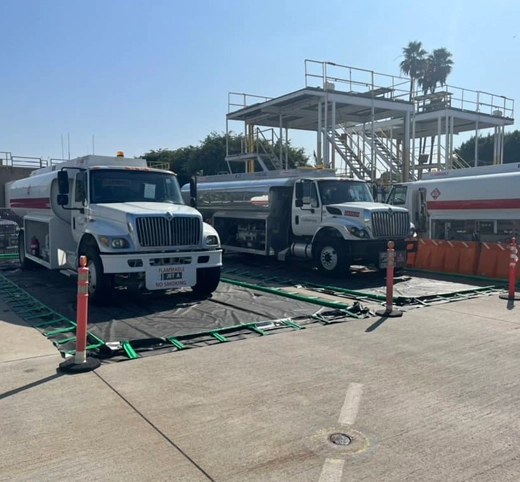

Sidewalls remain down during normal operations, loading, and unloading. Vehicles and equipment can drive in and out with no set-up or take-down required.
In the case of a spill, the foam ring around the top perimeter of the containment berm rises with the level of spilled liquid.
Built-in struts around the perimeter of the berm provide additional support when the liquid level is high.
Provides quick and easy spill containment for drums, IBCs, vehicles, frac tanks and other large containers.
Built-in handles help with transport and placement.
Material of construction: Copolymer-2000™.
Custom sizes available.

Ultra-Containment Berm - Stake Wall Models

Part #	Dimensions in. (mm)	Containment Capacity gal. (L)	Weight lbs. (kg)
8430	6 x 4 x 1 (1.8 x 1.2 x .3)	179 (677.6)	29 (13.2)
8431	6 x 6 x 1 (1.8 x 1.8 x .3)	269 (1018.3)	35 (15.9)
8432	10 x 10 x 1 (3 x 3 x .3)	748 (2831.5)	63 (28.6)
8710	12 x 12 x 1 (3.7 x 3.7 x .3)	1077 (4076.9)	85 (38.6)
8437	26 x 12 x 1 (7.9 x 3.7 x .3)	2333 (8831.4)	149 (67.6)
8711	30 x 12 x 1 (9.1 x 3.7 x .3)	2692 (10190.3)	171 (77.6)
8712	40 x 12 x 1 (12.2 x 3.7 x .3)	3590 (13589.6)	218 (98.9)
8713	50 x 12 x 1 (15.2 x 3.7 x .3)	4488 (16988.9)	266 (120.7)
8714	60 x 12 x 1 (18.3 x 3.7 x .3)	5385 (20384.4)	313 (142)
8715	72 x 12 x 1 (21.9 x 3.7 x .3)	6462 (24461.3)	370 (167.8)
8716	15 x 15 x 1 (4.6 x 4.6 x .3)	1683 (6370.8)	115 (52.2)
8717	20 x 15 x 1 (6.1 x 4.6 x .3)	2244 (8494.5)	141 (64)
8718	30 x 15 x 1 (9.1 x 4.6 x .3)	3366 (12741.7)	195 (88.5)
8719	40 x 15 x 1 (12.2 x 4.6 x .3)	4488 (16988.9)	248 (112.5)
8433	50 x 15 x 1 (15.2 x 4.6 x .3)	5610 (21236.2)	278 (126.1)
8720	60 x 15 x 1 (18.3 x 4.6 x .3)	6732 (25483.4)	356 (161.5)
8434	66 x 15 x 1 (20.1 x 4.6 x .3)	7405 (28031)	357 (161.9)
8721	72 x 15 x 1 (21.9 x 4.6 x .3)	8078 (30578.6)	420 (190.5)

Ultra-Containment Berms - Rapid-Rise Models - PVC 22 oz.

Part #	Dimensions in. (mm)	Containment Capacity gal. (L)	Weight lbs. (kg)
8654	6 x 4 x 1 (1.8 x 1.2 x .3)	179 (677.6)	24 (10.9)
8630	6 x 6 x 1 (1.8 x 1.8 x .3)	269 (1018.3)	34 (15.4)
8631	10 x 10 x 1 (3 x 3 x .3)	748 (2831.5)	57 (25.9)
8655	12 x 12 x 1 (3.7 x 3.7 x .3)	1077 (4076.9)	66 (29.9)
8656	26 x 12 x 1 (7.9 x 3.7 x .3)	2333 (8831.4)	118 (53.5)
8632	30 x 12 x 1 (9.1 x 3.7 x .3)	2692 (10190.3)	210 (95.3)
8657	40 x 12 x 1 (12.2 x 3.7 x .3)	3590 (13589.6)	170 (77.1)
8633	50 x 12 x 1 (15.2 x 3.7 x .3)	4488 (16988.9)	265 (120.2)
8658	60 x 12 x 1 (18.3 x 3.7 x .3)	5385 (20384.4)	244 (110.7)
8659	72 x 12 x 1 (21.9 x 3.7 x .3)	6462 (24461.3)	288 (130.6)
8660	15 x 15 x 1 (4.6 x 4.6 x .3)	1683 (6370.8)	93 (42.2)
8661	20 x 15 x 1 (6.1 x 4.6 x .3)	2244 (8494.5)	114 (51.7)
8662	30 x 15 x 1 (9.1 x 4.6 x .3)	3366 (12741.7)	158 (71.7)
8663	40 x 15 x 1 (12.2 x 4.6 x .3)	4488 (16988.9)	201 (91.2)
8664	50 x 15 x 1 (15.2 x 4.6 x .3)	5610 (21236.2)	244 (110.7)
8665	60 x 15 x 1 (18.3 x 4.6 x .3)	6732 (25483.4)	286 (129.7)
8666	66 x 15 x 1 (20.1 x 4.6 x .3)	7405 (28031)	313 (142)
8667	72 x 15 x 1 (21.9 x 4.6 x .3)	8078 (30578.6)	338 (153.3)

Ultra-Containment Berm Options

Get It "All-In-One"

Part #: 8670

The new “All-In-One” option for the Ultra-Containment Berm has all of the extra protection you need built right in. Both the Ground Tarp and Track Belts are pre-attached (welded or heat-sealed) depending on the materials used to make your berm. Once you unpackage the berm and set it up, it will be ready to use with the additional protection already in place.

Ultra-Berm Repair Kit

Part #: 8389

The Ultra-Berm Repair Kit contains everything needed to make most repairs to any Ultra-Containment Berm. Kit includes: (1) Tool Box, (1) Heat Gun – 110 volt, (1) Hand Roller, (4) replacement handles, (50) each of the following: 2” round patches, 4” round patches, 4”x12” patches.

For smaller repairs, an 11” x 36” piece of Ultra-Containment Berm material is available. Please contact us for more information.

FAQs
Resources & Docs
Compliance & Regs
Additional Info.

Frequently Asked Questions

Copolymer-2000: Max 160°F, Min: -25°F

PVC: Max 150°F, Min: -20°F

Copolymer 2000 – 25 oz. / sq. yard

PVC – 22 oz. / sq. yard

If the chemical is not listed in the guide, chances are that chemical has not been tested with the material. If we cannot get a definitive answer from our engineering staff, we can send a testing kit to you for a 30-day immersion test.

When the walls of the Ultra-Containment Berm, Rapid Rise Model are down (e.g., there is no spill being contained), they will fold inward. This means that with the 12″ walls, you will lose 28″ of space inside the berm. It is important that any equipment inside the berm is not resting or parked on top of the outer foam walls or they won’t rise in the event of a spill.

Yes, we can make containment berms in custom sizes in virtually any length and width.

Custom heights are available for most of the Ultra-Containment Berms. Please contact us for more information.

Ultra-Containment Berms ship from our factory in N. Augusta, SC 29860 at class 125.

The repair kit is simply an 11” x 36” piece of matching material and instructions on how to apply it to the berm. The only other item required is an industrial heat gun.

The ground tarp provides added protection from punctures or damage from beneath the Ultra-Containment Berm. Standard procedure is to sweep the area of any rocks or debris, then place the ground tarp down followed by the containment berm.

For smaller standard sized berms, the 11′ x 11′ ground tarp is recommended (Part# 8311). For larger berms, the general rule of thumb is to add 4′ to both the length and width dimensions of the berm. (e.g. a 16′ x 64′ ground tarp would be used for a 12′ x 60′ containment berm.)

Track belts are strips of very heavy-duty material (Reinforced PVC) that lay down inside of the berm. They take the wear and tear from tires of the vehicles that are driving in and out of the berms. Thereby extending the life of the product.

More Info/Downloads

Helps Comply with These Rules & Regulations

EPA Container Storage Regulation 40 CFR 264.175
Spill Prevention, Control and Countermeasure Act (SPCC) 40 CFR 112

Additional Product Information

Uniform Product Codes (UPCs)

UPC 808416084306 Ultra-Containment Berm Rapid Rise Model (Part #8430)
UPC 808416084313 Ultra-Containment Berm Rapid Rise Model (Part #8431)
UPC 808416084320 Ultra-Containment Berm Rapid Rise Model (Part #8432)
UPC 808416087109 Ultra-Containment Berm Rapid Rise Model (Part #8710)
UPC 808416084375 Ultra-Containment Berm Rapid Rise Model (Part #8437)
UPC 808416087116 Ultra-Containment Berm Rapid Rise Model (Part #8711)
UPC 808416087123 Ultra-Containment Berm Rapid Rise Model (Part #8712)
UPC 808416087130 Ultra-Containment Berm Rapid Rise Model (Part #8713)
UPC 808416087147 Ultra-Containment Berm Rapid Rise Model (Part #8714)
UPC 808416087154 Ultra-Containment Berm Rapid Rise Model (Part #8715)
UPC 808416087161 Ultra-Containment Berm Rapid Rise Model (Part #8716)
UPC 808416087178 Ultra-Containment Berm Rapid Rise Model (Part #8717)
UPC 808416087185 Ultra-Containment Berm Rapid Rise Model (Part #8718)
UPC 808416087192 Ultra-Containment Berm Rapid Rise Model (Part #8719)
UPC 808416084337 Ultra-Containment Berm Rapid Rise Model (Part #8433)
UPC 808416087208 Ultra-Containment Berm Rapid Rise Model (Part #8720)
UPC 808416084344 Ultra-Containment Berm Rapid Rise Model (Part #8434)
UPC 808416087215 Ultra-Containment Berm Rapid Rise Model (Part #8721)
UPC 808416086546 Ultra-Containment Berm Rapid Rise Model (Part #8654)
UPC 808416086300 Ultra-Containment Berm Rapid Rise Model (Part #8630)
UPC 808416086317 Ultra-Containment Berm Rapid Rise Model (Part #8631)
UPC 808416086553 Ultra-Containment Berm Rapid Rise Model (Part #8655)
UPC 808416086560 Ultra-Containment Berm Rapid Rise Model (Part #8656)
UPC 808416086324 Ultra-Containment Berm Rapid Rise Model (Part #8632)
UPC 808416086577 Ultra-Containment Berm Rapid Rise Model (Part #8657)
UPC 808416086331 Ultra-Containment Berm Rapid Rise Model (Part #8633)
UPC 808416086584 Ultra-Containment Berm Rapid Rise Model (Part #8658)
UPC 808416086591 Ultra-Containment Berm Rapid Rise Model (Part #8659)
UPC 808416086607 Ultra-Containment Berm Rapid Rise Model (Part #8660)
UPC 808416086614 Ultra-Containment Berm Rapid Rise Model (Part #8661)
UPC 808416086621 Ultra-Containment Berm Rapid Rise Model (Part #8662)
UPC 808416086638 Ultra-Containment Berm Rapid Rise Model (Part #8663)
UPC 808416086645 Ultra-Containment Berm Rapid Rise Model (Part #8664)
UPC 808416086652 Ultra-Containment Berm Rapid Rise Model (Part #8665)
UPC 808416086669 Ultra-Containment Berm Rapid Rise Model (Part #8666)
UPC 808416086676 Ultra-Containment Berm Rapid Rise Model (Part #8667)
