Ultra-Containment Berm®

Collapsible Wall Model

Economical design sets up quickly and provides secure containment

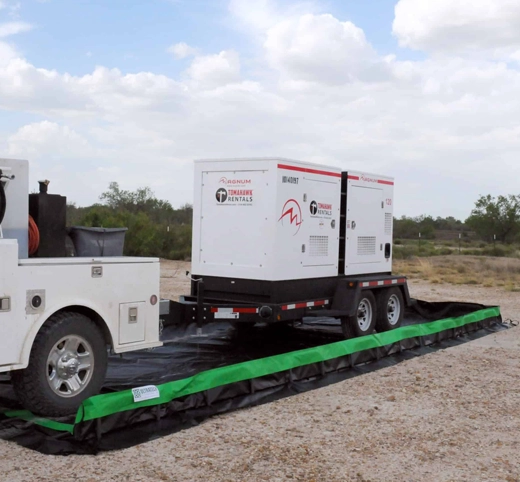

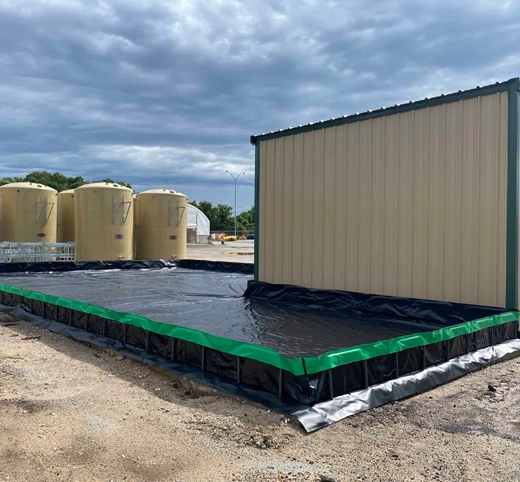

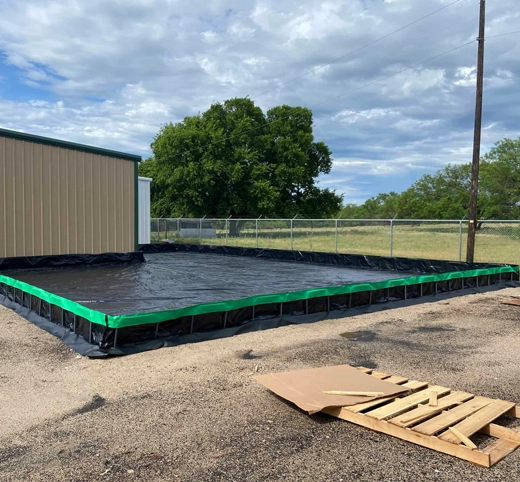

The Ultra-Containment Berm, Collapsible Wall Model features an economical design that sets up quickly and provides secure containment. PVC sidewall assemblies provide sturdy support for the containment area but are quickly lowered easy access. Great for spill containment of large quantities of drums, vehicles, frac tanks or other larger containers.

Product Highlights

The collapsible wall model containment berm features rugged PVC sidewall assemblies for sidewall support. Simply swivel the ``feet`` of the PVC supports to lower or raise the sidewalls in just seconds!
Rugged materials provide years of service and excellent chemical compatibility.
Add the Ultra-Self Bailer to keep rainwater out of the spill containment berm. Rainwater drains from the berm passively but will automatically shut off if there is a spill.
Standard material of construction is Copolymer-2000. Other materials available upon request.
Custom sizes available.

Ultra-Containment Berms - Collapsible Wall Models - Copolymer-2000

Part #	Dimensions ft. (m)	Containment Capacity gal. (L)	Weight lbs. (kg)
8405	6 x 4 x 1 (1.8 x 1.2 x .3)	179 (677.6)	43 (19.5)
8403	6 x 6 x 1 (1.8 x 1.8 x .3)	269 (1018.3)	46 (20.9)

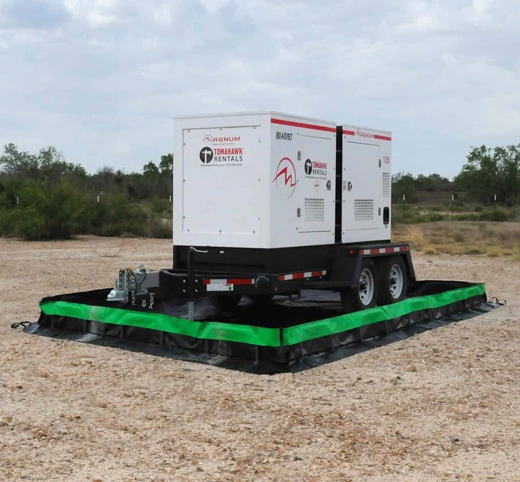

8400	10 x 10 x 1 (3 x 3 x .3)	748 (2831.5)	70 (31.8)
8550	20 x 10 x 1 (6.1 x 3 x .3)	1496 (5663)	96 (43.5)
8551	30 x 10 x 1 (9.1 x 3 x .3)	2244 (8494.5)	132 (59.9)
8552	40 x 10 x 1 (12.2 x 3 x .3)	2992 (11326)	170 (77.1)
8553	50 x 10 x 1 (15.2 x 3 x .3)	3740 (14157.4)	209 (94.8)
8554	12 x 12 x 1 (3.7 x 3.7 x .3)	1077 (4076.9)	69 (31.3)
8555	20 x 12 x 1 (6.1 x 3.7 x .3)	1795 (6794.8)	103 (46.7)
8556	30 x 12 x 1 (9.1 x 3.7 x .3)	2692 (10190.3)	142 (64.4)
8557	40 x 12 x 1 (12.2 x 3.7 x .3)	3590 (13589.6)	183 (83)
8558	50 x 12 x 1 (15.2 x 3.7 x .3)	4488 (16988.9)	224 (101.6)
8404	60 x 12 x 1 (18.3 x 3.7 x .3)	5385 (20384.4)	323 (146.5)
8559	15 x 15 x 1 (4.6 x 4.6 x .3)	1683 (6370.8)	95 (43.1)
8560	20 x 15 x 1 (6.1 x 4.6 x .3)	2244 (8494.5)	119 (54)
8561	30 x 15 x 1 (9.1 x 4.6 x .3)	3366 (12741.7)	164 (74.4)
8562	40 x 15 x 1 (12.2 x 4.6 x .3)	4488 (16988.9)	210 (95.3)
8401	50 x 15 x 1 (15.2 x 4.6 x .3)	5610 (21236.2)	319 (144.7)
8402	66 x 15 x 1 (20.1 x 4.6 x .3)	7405 (28031)	420 (190.5)

Ultra-Containment Berm Options

Get It "All-In-One"

Part #: 8670

The new “All-In-One” option for the Ultra-Containment Berm has all of the extra protection you need built right in. Both the Ground Tarp and Track Belts are pre-attached (welded or heat-sealed) depending on the materials used to make your berm. Once you unpackage the berm and set it up, it will be ready to use with the additional protection already in place.

Ultra-Berm Repair Kit

Part #: 8389

The Ultra-Berm Repair Kit contains everything needed to make most repairs to any Ultra-Containment Berm. Kit includes: (1) Tool Box, (1) Heat Gun – 110 volt, (1) Hand Roller, (4) replacement handles, (50) each of the following: 2” round patches, 4” round patches, 4”x12” patches.

For smaller repairs, an 11” x 36” piece of Ultra-Containment Berm material is available. Please contact us for more information.

FAQs
Resources & Docs
Compliance & Regs
Additional Info.

Frequently Asked Questions

PVC: Max 150°F, Min: -20°F

Copolymer-2000: Max 160°F, Min: -25°F

Copolymer 2000 – 25 oz. / sq. yard

PVC – 22 oz. / sq. yard

If the chemical is not listed in the guide, chances are that chemical has not been tested with the material. If we cannot get a definitive answer from our engineering staff, we can send a testing kit to you for a 30-day immersion test.

Yes, we can make containment berms in custom sizes in virtually any length and width.

Custom heights are available for most of the Ultra-Containment Berms. Please contact us for more information.

Ultra-Containment Berms ship from our factory in N. Augusta, SC 29860 at class 125.

The repair kit is simply an 11” x 36” piece of matching material and instructions on how to apply it to the berm. The only other item required is an industrial heat gun.

The ground tarp provides added protection from punctures or damage from beneath the Ultra-Containment Berm. Standard procedure is to sweep the area of any rocks or debris, then place the ground tarp down followed by the containment berm.

For smaller standard sized berms, the 11′ x 11′ ground tarp is recommended (Part# 8311). For larger berms, the general rule of thumb is to add 4′ to both the length and width dimensions of the berm. (e.g. a 16′ x 64′ ground tarp would be used for a 12′ x 60′ containment berm.)

Track belts are strips of very heavy-duty material (Reinforced PVC) that lay down inside of the berm. They take the wear and tear from tires of the vehicles that are driving in and out of the berms. Thereby extending the life of the product.

Options

More Info / Downloads

Helps Comply with These Rules & Regulations

EPA Container Storage Regulation 40 CFR 264.175
Spill Prevention, Control and Countermeasure Act (SPCC) 40 CFR 112

Additional Product Information

Uniform Product Codes (UPCs)

UPC 808416084054 Ultra-Containment Berm Collapsible Wall Model (Part #8405)
UPC 808416084030 Ultra-Containment Berm Collapsible Wall Model (Part #8403)
UPC 808416084009 Ultra-Containment Berm Collapsible Wall Model (Part #8400)
UPC 808416085501 Ultra-Containment Berm Collapsible Wall Model (Part #8550)
UPC 808416085518 Ultra-Containment Berm Collapsible Wall Model (Part #8551)
UPC 808416085525 Ultra-Containment Berm Collapsible Wall Model (Part #8552)
UPC 808416085532 Ultra-Containment Berm Collapsible Wall Model (Part #8553)
UPC 808416085549 Ultra-Containment Berm Collapsible Wall Model (Part #8554)
UPC 808416085556 Ultra-Containment Berm Collapsible Wall Model (Part #8555)
UPC 808416085563 Ultra-Containment Berm Collapsible Wall Model (Part #8556)
UPC 808416085570 Ultra-Containment Berm Collapsible Wall Model (Part #8557)
UPC 808416085587 Ultra-Containment Berm Collapsible Wall Model (Part #8558)
UPC 808416084047 Ultra-Containment Berm Collapsible Wall Model (Part #8404)
UPC 808416085594 Ultra-Containment Berm Collapsible Wall Model (Part #8559)
UPC 808416085600 Ultra-Containment Berm Collapsible Wall Model (Part #8560)
UPC 808416085617 Ultra-Containment Berm Collapsible Wall Model (Part #8561)
UPC 808416085624 Ultra-Containment Berm Collapsible Wall Model (Part #8562)
UPC 808416084016 Ultra-Containment Berm Collapsible Wall Model (Part #8401)
UPC 808416084023 Ultra-Containment Berm Collapsible Wall Model (Part #8402)
