Ultra-Hose Stand®
Ultra-Hose Stand®
Keep hoses off berm sidewalls—reduce damage and maintain full capacity

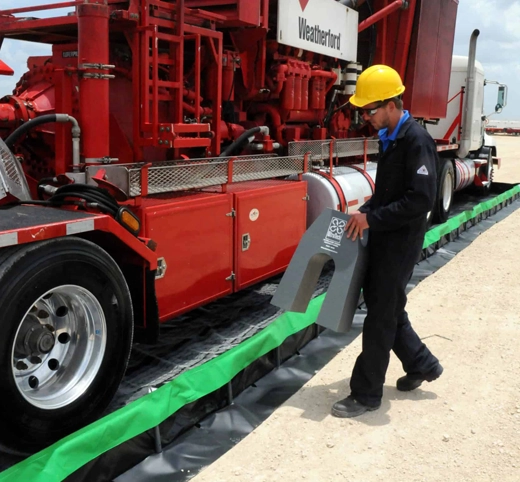

Many of our Ultra-Containment Berms have capacities in the thousands of gallons, which is great… as long as the sidewalls stay up. During fueling operations with tanker trucks, if the fuel hoses are laid unsupported on a containment berm wall, there is a possibility of the wall being pushed down. Even a slightly reduced angle in the wall could mean a significant reduction in capacity.

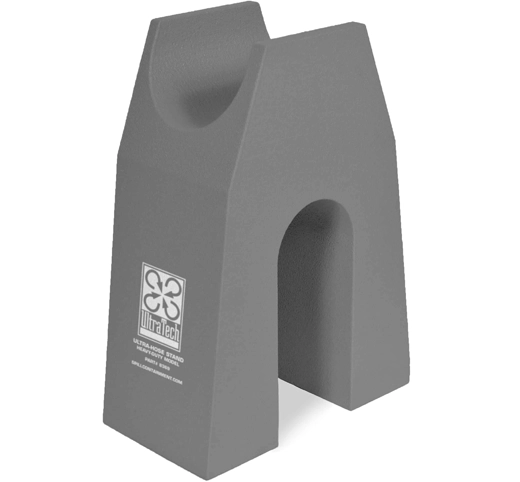

The Ultra-Hose Stand was designed to support fueling hoses and act as a bridge to ensure that containment berm sidewalls remain fully upright. The hose stand is rugged and heavy-duty enough to withstand the daily rigors of fueling operations but lightweight enough to be easily moved and stored.
Product Highlights
- Keeps hoses off of containment berm sidewalls—helps maintain structural integrity and capacity.
- Versatile units can be used completely inside or outside of the berm or straddling the berm with the sidewall running through the opening in the side support.
- Cutout in the top of the unit can handle up to 6 1/2” hoses—keeps hoses secure.
Ultra-Hose Stand
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|
| 8369 | Heavy-Duty | 16.3 x 9.3 x 23.3 (412.8 x 235 x 590.6) | 5 (2.3) |
Frequently Asked Questions
The hose stand is made from polyurea.
- The width of the opening at the bottom (red line) is 6″
- The overall height of the opening (orange line) is 14″
- The height of the straight vertical wall (green line) is 11″
We can make hose stands in many colors. Please contact us for more information.
The Ultra-Hose Stand can hold up to 400 lbs. This was determined using a load that was uniformly distributed across a 6.75” OD pipe.
More Info/Downloads
We’re working to gather supporting documents and links for this product. In the meantime, we’re here to help if you have any questions.
Helps Comply with These Rules & Regulations
- Spill Prevention, Control and Countermeasure Act (SPCC) 40 CFR 112
Additional Product Information
Uniform Product Codes (UPCs)
- UPC 808416083699 Ultra-Hose Stand Heavy-Duty (Part #8369)
- FAQs
-
Frequently Asked Questions
The hose stand is made from polyurea.
- The width of the opening at the bottom (red line) is 6″
- The overall height of the opening (orange line) is 14″
- The height of the straight vertical wall (green line) is 11″
We can make hose stands in many colors. Please contact us for more information.
The Ultra-Hose Stand can hold up to 400 lbs. This was determined using a load that was uniformly distributed across a 6.75” OD pipe.
- Resources & Docs
-
More Info/Downloads
We’re working to gather supporting documents and links for this product. In the meantime, we’re here to help if you have any questions.
- Compliance & Regs
-
Helps Comply with These Rules & Regulations
- Spill Prevention, Control and Countermeasure Act (SPCC) 40 CFR 112
- Additional Info.
-
Additional Product Information
Uniform Product Codes (UPCs)
- UPC 808416083699 Ultra-Hose Stand Heavy-Duty (Part #8369)
