Ultra-Containment Berm®

Foam Wall Model

Low profile design is perfect for equipment maintenance and portable drum containment

The Ultra-Containment Berm – Foam Wall Model provides containment for smaller spills, leaks, and drips. The 4” high sidewalls may mean a lesser capacity than its 12” high counterparts but it also means versatility and convenience.

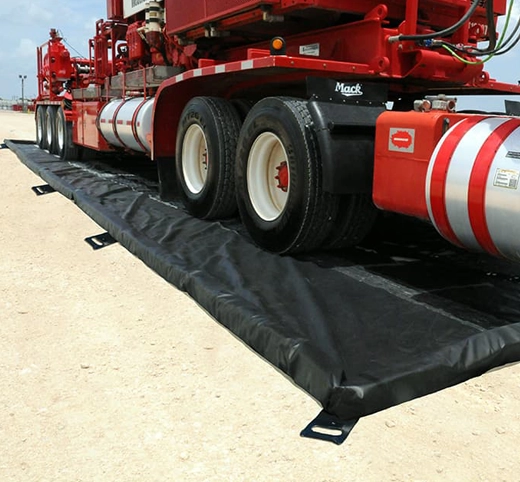

The foam wall model has true drive-in and drive-out capability and requires no setup other than the initial deployment.

Product Highlights

Capture nuisance leaks and spills from vehicles, oily equipment, tanks and drums.
Soft foam sidewall easily compresses for convenient loading and off-loading.
Choose from several standard sizes to meet your spill containment needs - custom sizes also available.
Low, 4-inch sidewall contains spills - keeps plant floors and soil free from contamination.
No set-up required - simply unfold for quick deployment. Folded units require minimal storage space.
Available in Copolymer-2000 or PVC (24 mil) - withstands the rigors of industrial and construction applications.
Built-in handles help with transport and placement.

Ultra-Containment Berms - Foam Wall Models (2-Inch Walls)

Part #	Dimensions ft. (m)	Containment Capacity gal. (L)	Weight lbs. (kg)
8385	6 x 4 x .2 (1.8 x 1.2 x .1)	25 (94.6)	24 (10.9)
8386	8 x 6 x .2 (2.4 x 1.8 x .1)	55 (208.2)	30 (13.6)
8387	10 x 8 x .2 (3 x 2.4 x .1)	88 (333.1)	38 (17.2)

Ultra-Containment Berms - Foam Wall Models (4-Inch Walls) - Copolymer 2000

Part #	Dimensions ft. (m)	Containment Capacity gal. (L)	Weight lbs. (kg)
8568	3 x 3 x .3 (.9 x .9 x .1)	22 (83)	20 (9.7)
8570	6 x 4 x .3 (1.8 x 1.2 x .1)	59 (223.3)	27 (12.2)
8571	8 x 8 x .3 (2.4 x 2.4 x .1)	159 (601.9)	45 (20.4)
8572	10 x 10 x .3 (3 x 3 x .1)	249 (942.6)	61 (27.7)
8573	20 x 10 x .3 (6.1 x 3 x .1)	498 (1885.1)	101 (45.8)
8574	30 x 10 x .3 (9.1 x 3 x .1)	748 (2831.5)	137 (62.1)
8575	40 x 10 x .3 (12.2 x 3 x .1)	997 (3774.1)	177 (80.3)
8576	50 x 10 x .3 (15.2 x 3 x .1)	1246 (4716.6)	217 (98.4)
8577	12 x 12 x .3 (3.7 x 3.7 x .1)	359 (1359)	82 (37.2)
8578	16 x 12 x .3 (4.9 x 3.7 x .1)	478 (1809.4)	97 (44)
8579	20 x 12 x .3 (6.1 x 3.7 x .1)	598 (2263.7)	116 (52.6)
8580	30 x 12 x .3 (9.1 x 3.7 x .1)	897 (3395.5)	159 (72.1)
8581	35 x 12 x .3 (10.7 x 3.7 x .1)	1047 (3963.3)	184 (83.5)
8582	40 x 12 x .3 (12.2 x 3.7 x .1)	1196 (4527.4)	203 (92.1)
8583	50 x 12 x .3 (15.2 x 3.7 x .1)	1496 (5663)	249 (112.9)
8584	60 x 12 x .3 (18.3 x 3.7 x .1)	1795 (6794.8)	293 (132.9)
8585	72 x 12 x .3 (21.9 x 3.7 x .1)	2154 (8153.8)	348 (157.9)
8586	15 x 15 x .3 (4.6 x 4.6 x .1)	561 (2123.6)	104 (47.2)
8587	20 x 15 x .3 (6.1 x 4.6 x .1)	748 (2831.5)	132 (59.9)
8588	30 x 15 x .3 (9.1 x 4.6 x .1)	1122 (4247.2)	182 (82.6)
8589	40 x 15 x .3 (12.2 x 4.6 x .1)	1496 (5663)	232 (105.2)
8590	50 x 15 x .3 (15.2 x 4.6 x .1)	1870 (7078.7)	281 (127.5)
8591	66 x 15 x .3 (20.1 x 4.6 x .1)	7405 (28031)	388 (176)
8592	72 x 15 x .3 (21.9 x 4.6 x .1)	2692 (10190.3)	393 (178.3)

Ultra-Containment Berms - Foam Wall Models (4-Inch Walls) - PVC 22 oz.

Part #	Dimensions ft. (m)	Containment Capacity gal. (L)	Weight lbs. (kg)
8465	3 x 3 x .3 (.9 x .9 x .1)	22 (83)	20 (9.7)
8466	4 x 4 x .3 (1.2 x 1.2 x .1)	39 (148)	11 (4.99)
8460	6 x 4 x .3 (1.8 x 1.2 x .1)	59 (223.3)	35 (15.9)
8467	6 x 6 x 0.3 (1.8 x 1.8 x 0.1)	67 (254)	19.8 (9.0)
8461	8 x 8 x .3 (2.4 x 2.4 x .1)	159 (601.9)	45 (20.4)
8470	10 x 10 x .3 (3 x 3 x .1)	249 (942.6)	51 (23.1)
8471	20 x 10 x .3 (6.1 x 3 x .1)	498 (1885.1)	83 (37.6)
8472	30 x 10 x .3 (9.1 x 3 x .1)	748 (2831.5)	118 (53.5)
8473	40 x 10 x .3 (12.2 x 3 x .1)	997 (3774.1)	150 (68)
8474	50 x 10 x .3 (15.2 x 3 x .1)	1246 (4716.6)	182 (82.6)
8475	12 x 12 x .3 (3.7 x 3.7 x .1)	359 (1359)	63 (28.6)
8462	16 x 12 x .3 (4.9 x 3.7 x .1)	478 (1809.4)	75 (34)
8476	20 x 12 x .3 (6.1 x 3.7 x .1)	598 (2263.7)	88 (39.9)
8477	30 x 12 x .3 (9.1 x 3.7 x .1)	897 (3395.5)	120 (54.4)
8463	35 x 12 x .3 (10.7 x 3.7 x .1)	1047 (3963.3)	120 (54.4)
8478	40 x 12 x .3 (12.2 x 3.7 x .1)	1196 (4527.4)	152 (68.9)
8464	50 x 12 x .3 (15.2 x 3.7 x .1)	1496 (5663)	149.90 (67.99)
8479	60 x 12 x .3 (18.3 x 3.7 x .1)	1795 (6794.8)	219 (99.3)
8480	72 x 12 x .3 (21.9 x 3.7 x .1)	2154 (8153.8)	260 (117.9)
8481	15 x 15 x .3 (4.6 x 4.6 x .1)	561 (2123.6)	86 (39)
8482	20 x 15 x .3 (6.1 x 4.6 x .1)	748 (2831.5)	109 (49.4)
8483	30 x 15 x .3 (9.1 x 4.6 x .1)	1122 (4247.2)	148 (67.1)
8484	40 x 15 x .3 (12.2 x 4.6 x .1)	1496 (5663)	189 (85.7)
8485	50 x 15 x .3 (15.2 x 4.6 x .1)	1870 (7078.7)	230 (104.3)
8486	66 x 15 x .3 (20.1 x 4.6 x .1)	2468 (9342.4)	295 (133.8)
8487	72 x 15 x .3 (21.9 x 4.6 x .1)	2692 (10190.3)	320 (145.1)

Ultra-Containment Berm Options

Get It "All-In-One"

Part #: 8670

The new “All-In-One” option for the Ultra-Containment Berm has all of the extra protection you need built right in. Both the Ground Tarp and Track Belts are pre-attached (welded or heat-sealed) depending on the materials used to make your berm. Once you unpackage the berm and set it up, it will be ready to use with the additional protection already in place.

Ultra-Berm Repair Kit

Part #: 8389

The Ultra-Berm Repair Kit contains everything needed to make most repairs to any Ultra-Containment Berm. Kit includes: (1) Tool Box, (1) Heat Gun – 110 volt, (1) Hand Roller, (4) replacement handles, (50) each of the following: 2” round patches, 4” round patches, 4”x12” patches.

For smaller repairs, an 11” x 36” piece of Ultra-Containment Berm material is available. Please contact us for more information.

FAQs
Resources & Docs
Compliance & Regs
Additional Info.

Frequently Asked Questions

PVC: Max 150°F, Min: -20°F

Copolymer-2000: Max 160°F, Min: -25°F

Copolymer 2000 – 25 oz. / sq. yard

PVC – 22 oz. / sq. yard

If the chemical is not listed in the guide, chances are that chemical has not been tested with the material. If we cannot get a definitive answer from our engineering staff, we can send a testing kit to you for a 30-day immersion test.

Yes, we can make containment berms in custom sizes in virtually any length and width.

Custom heights are available for most of the Ultra-Containment Berms. Please contact us for more information.

Ultra-Containment Berms ship from our factory in N. Augusta, SC 29860 at class 125.

The repair kit is simply an 11” x 36” piece of matching material and instructions on how to apply it to the berm. The only other item required is an industrial heat gun.

The ground tarp provides added protection from punctures or damage from beneath the Ultra-Containment Berm. Standard procedure is to sweep the area of any rocks or debris, then place the ground tarp down followed by the containment berm.

For smaller standard sized berms, the 11′ x 11′ ground tarp is recommended (Part# 8311). For larger berms, the general rule of thumb is to add 4′ to both the length and width dimensions of the berm. (e.g. a 16′ x 64′ ground tarp would be used for a 12′ x 60′ containment berm.)

Track belts are strips of very heavy-duty material (Reinforced PVC) that lay down inside of the berm. They take the wear and tear from tires of the vehicles that are driving in and out of the berms. Thereby extending the life of the product.

More Info/Downloads

Helps Comply with These Rules & Regulations

EPA Container Storage Regulation 40 CFR 264.175
Spill Prevention, Control and Countermeasure Act (SPCC) 40 CFR 112
