Ultra-Pellet Drain®

Large drain can be added to containment berms to provide quick draining of water while still containing plastic pellets

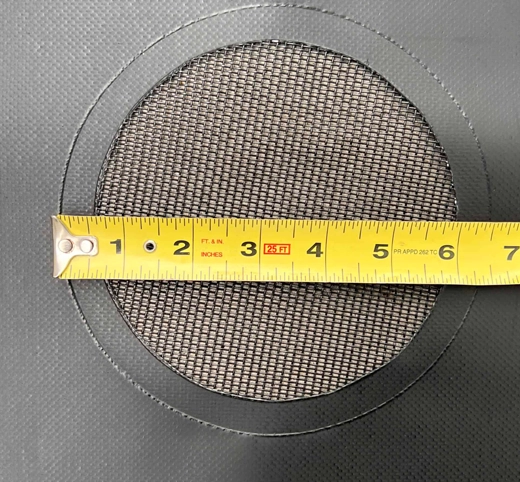

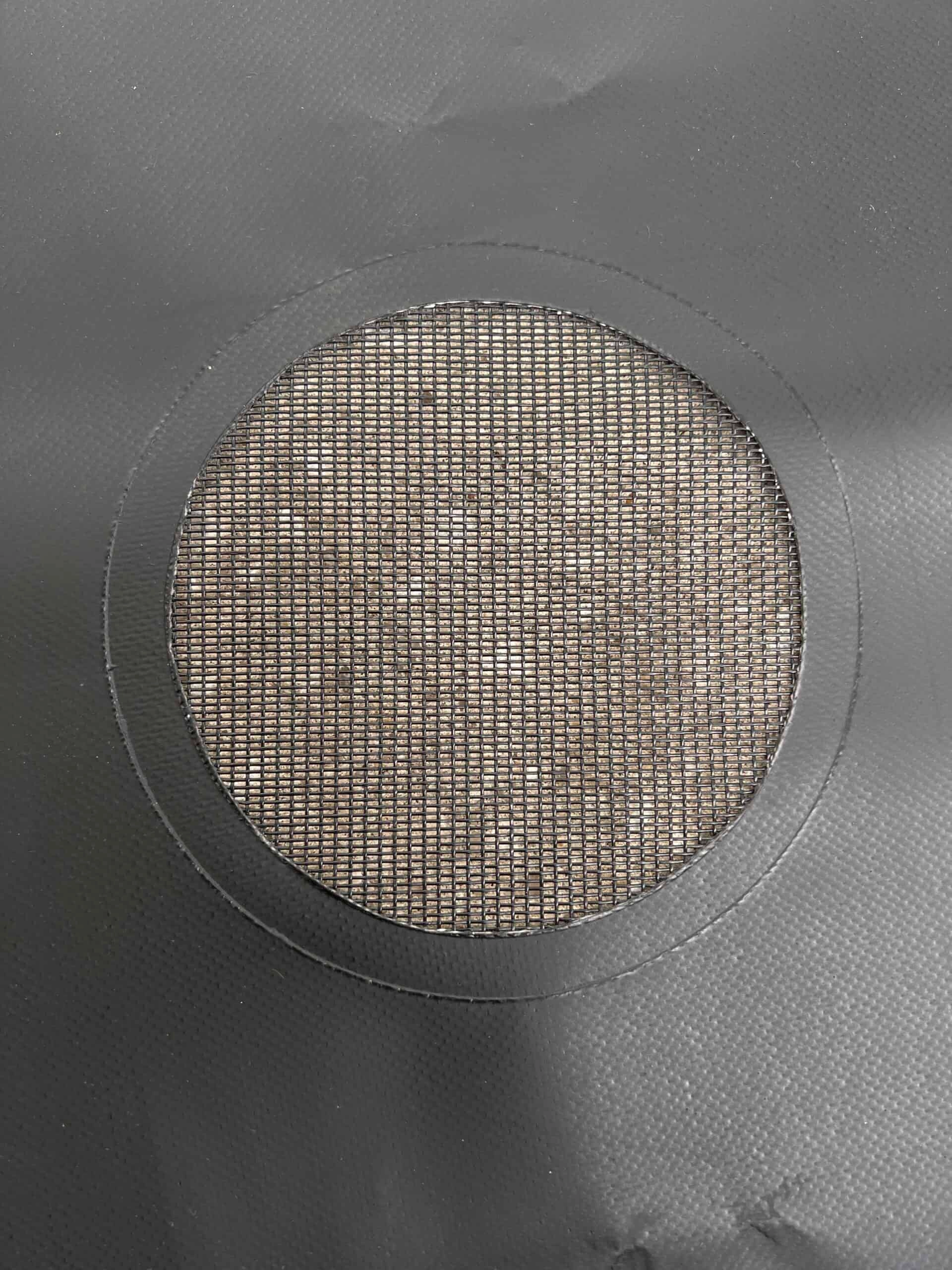

When you need to contain plastic pellets (“nurdles”) while also allowing liquids to drain, the Ultra-Pellet Drain integrated into one of our flexible containment berms is the perfect solution. This 6″ diameter drain is constructed with a 17×8 weave designed to trap plastic pellets used in the manufacturing of plastic goods and stop them from entering our environment.

Note that the Ultra-Pellet Drain must be ordered at the same time the flexible berm is being ordered, as it is integrated into the berm. Also, note that containment berms that incorporate the use of the Ultra-Pellet Drain will not contain liquids of any kind!

Product Highlights

Large, six inch diameter, drain allows rain water to quickly drain from the berm while containing plastic pellets.
17x8 weave construction provides quick draining.
Multiple drains can be added for larger berms.
Material of construction: Vinyl coated polyester.

Ultra-Pellet Drain

Part #	Model	Product Image	Dimensions in. (mm)	Notes
8384	6″ Mesh Drain		6″ dia	This product must be ordered at the same time as the berm it will be installed into.

Eligible Products

The spill containment products listed below are compatible with this product, the Ultra-Pellet Drain. Remember: this drain must be ordered when you order any of the berms below if your goal is to contain plastic pellets (“nurdles”) and not liquids of any kind.

FAQs
Resources & Docs
Compliance & Regs
Additional Info.

Frequently Asked Questions

No. Since the drain itself is flexible, along with the berm it is installed into, there is no drain plug available. Containment berms that incorporate the use of the Ultra-Pellet Drain will not contain liquids of any kind!

Any berm with the Ultra-Pellet Drain installed will not contain liquid. Depending on the model and your situation, you could place the berm with the pellet drain on top of another containment device to capture the liquid flowing through the pellet drain.

An example of this would be a Mini Foam Wall model Ultra-Containment Berm with the Ultra-Pellet Drain installed, which will contain plastic pellets but not liquids, placed on top of a Flexible Model Ultra-Spill Pallet designed to contain liquids but not plastic pellets.

The 17×8 weave construction in this mesh fabric means that there are 17 threads per inch running in one direction (warp), and 8 threads per inch running in the perpendicular direction (fill). In other words, the fabric is made up of a grid-like pattern of interlaced threads, with 17 threads in one direction and 8 threads in the other.

More Info/Downloads

Flyer

This product may not address any specific regulations but if you have any questions, we’re here to help.

Additional Product Information

Uniform Product Codes (UPCs)

UPC TBD Ultra-Pellet Drain 6″ Mesh Drain (Part #8384)

FAQs

Frequently Asked Questions

No. Since the drain itself is flexible, along with the berm it is installed into, there is no drain plug available. Containment berms that incorporate the use of the Ultra-Pellet Drain will not contain liquids of any kind!

Any berm with the Ultra-Pellet Drain installed will not contain liquid. Depending on the model and your situation, you could place the berm with the pellet drain on top of another containment device to capture the liquid flowing through the pellet drain.

An example of this would be a Mini Foam Wall model Ultra-Containment Berm with the Ultra-Pellet Drain installed, which will contain plastic pellets but not liquids, placed on top of a Flexible Model Ultra-Spill Pallet designed to contain liquids but not plastic pellets.

The 17×8 weave construction in this mesh fabric means that there are 17 threads per inch running in one direction (warp), and 8 threads per inch running in the perpendicular direction (fill). In other words, the fabric is made up of a grid-like pattern of interlaced threads, with 17 threads in one direction and 8 threads in the other.
