RVE Series Refrigerant Recovery Valves
RVE Series Refrigerant Recovery Valves
Designed to ensure the cleanest, driest refrigerant gas for the most efficient operation of any HVACR system.

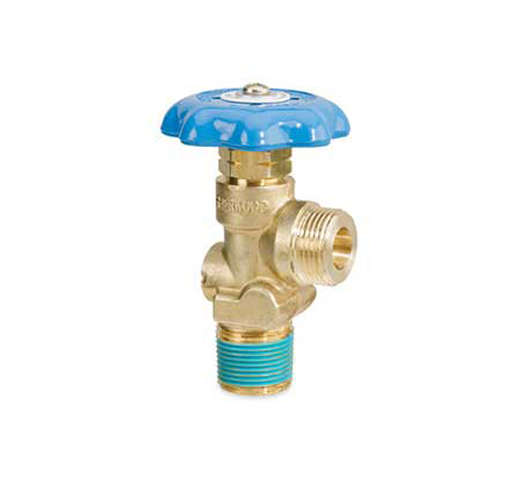

Key Features & Benefits RVE Series Valves
- Replaceable bonnet and stem assembly for ease of service in the field
- For use with large multi-port refrigerant reclaim cylinders
- PTFE coated anti-galling stem for ease of operation
- Replaceable color-coded handwheels
- Ease of operation due to low operating torque with proven o-ring seal technology
- Major component forged and machined from brass alloys controlled to exacting specifications

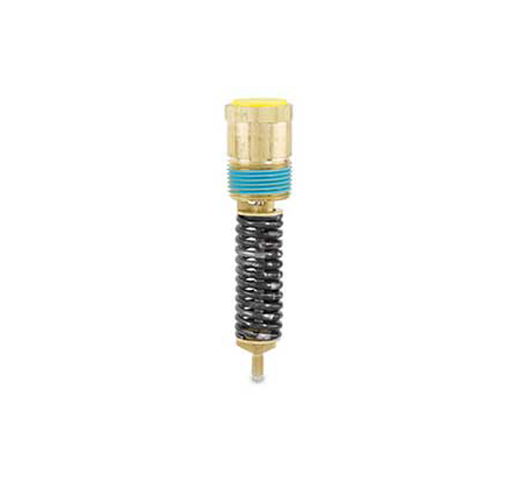

YVE445FR Series Valves
- For 1″ NPT tank connection
- Up to 1000 lb. water capacity
- For use on DOT cylinders at 260 PSI Working Pressure
- Start to discharge range 390 to 520 PSI
| Design Specifications | |
|---|---|
| Working pressure | 0 – 600 PSI (41 bar) |
| Helium Leak Rate | 10-4 atm cc/sec |
| Operating Temp Range | -50° F (-45°C) up to 149° F (65°C) |
| Materials | CDA 377 Brass, CDA 360 Brass, PTFE, Neoprene, Nylon 101 |
| Standard Accreditation | ISO 10297- 2014, CGA V9-2019 |
| Cv | 0.54 |
