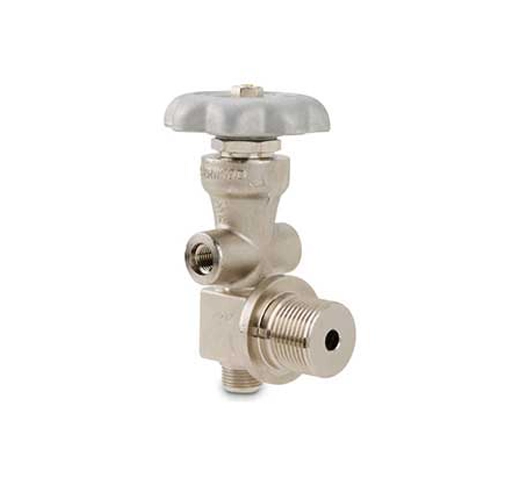

DF Series Alternative Energy Valves
DF Series Alternative Energy Valves
Sherwood DF Series valves are engineered for use with multi-fuel or bi-fuel engines using CNG and hydrogen.
Key Features & Benefits
- Heavy-duty forged brass body for durability and coated with optional protective chrome or nickel finish
- Dual outlet design allows for manifolding without use of adapters or tees, eliminating multiple joints
- Location of outlets above valve seat enables individual cylinder isolation without shutting off manifold
- Designed for direct manifold connections, reducing components and leak points
- Low operating torque design to ensure ease of operation during filling and use
- Available with unitized Pressure Relief Device having fuse-metal backed or unbacked burst disc
- Available with standard CGA connections as well as international inlets and outlets
| Design Specifications | |
|---|---|
| Working pressure | 0 – 6250 PSI (431 bar) |
| Helium Leak Rate | 10-3 atm cc/sec |
| Operating Temp Range | -50° F (-45°C) up to 149° F (65°C) |
| Materials | CDA 377 Brass, CDA 360 Brass, PTFE, PA 6/6, Nickel |
| Standard Accreditation | CGA V9 -2019 |
| Cv | 0.67 |
