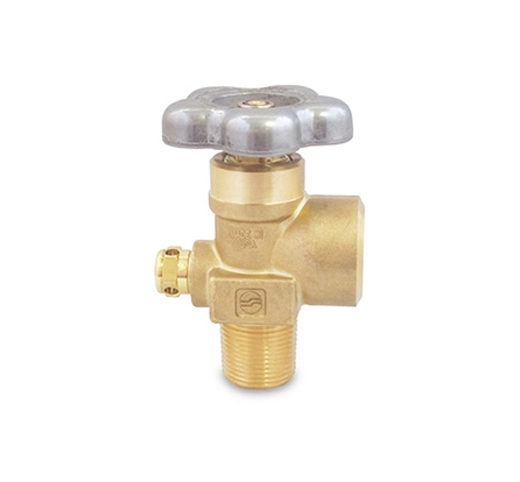

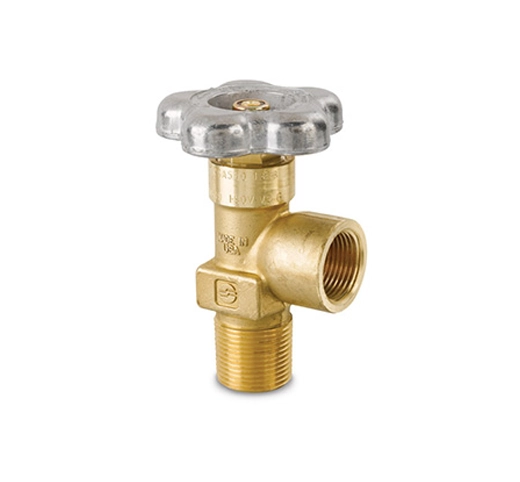

GSV & GSHV Series Cylinder and Manifold Valves

Sherwood GSV & GSHV Series global industrial cylinder & manifold valves are used in cylinders containing inerts, oxidizers and flammables. Valves are available with various inlets and outlet specifications, with or without pressure relief devices, and standard brass or chrome plated exterior.

Key Features & Benefits

Heavy-duty forged brass body for durability and high pressure
Precisely machined internal components meet the most stringent international valve performance standards
Pressure Relief Device (PRD) is a unitized plug design that provides excellent flow characteristics, ensures proper assembly and tamper resistance
Metal-to-metal seal below bonnet threads prevents pressure in the threads at top of valve body
Direct-drive stem design with optimized O-ring (GSV) or double O-ring (GSHV) seal reduces friction and operates at exceptionally low torque levels
Inlet and outlet thread configurations are available for a broad spectrum of customer, country and code specifications
Tapped for dip tube as required

Design Specifications	GSV	GSHV
Working pressure	0 – 3500 PSI (241 bar)	3501 – 6400 PSI (441 bar)
Helium Leak Rate	10^-3 atm cc/sec	10^-4 atm cc/sec
Operating Temp Range	-50° F (-45°C) up to 149° F (65°C)	-50° F (-45°C) up to 149° F (65°C)
Materials	CDA 377 Brass, CDA 360 Brass, EPDM, PA 6/6	CDA 377 Brass, CDA 360 Brass, EPDM, PA 6/6
Cv	0.69 Cylinder Valve; CO2 & Manifold 1.23	0.69 Cylinder Valve; CO2 & Manifold 1.23
Standard Accreditation	ISO 10297- 2014, CGA V9-2019	ISO 10297- 2014, CGA V9-2019
PRD Install Torque	25-35 ft.-lbs.	35-45 ft.-lbs.
Inlets & Outlets	Available based on country specific specifications	Available based on country specific specifications
